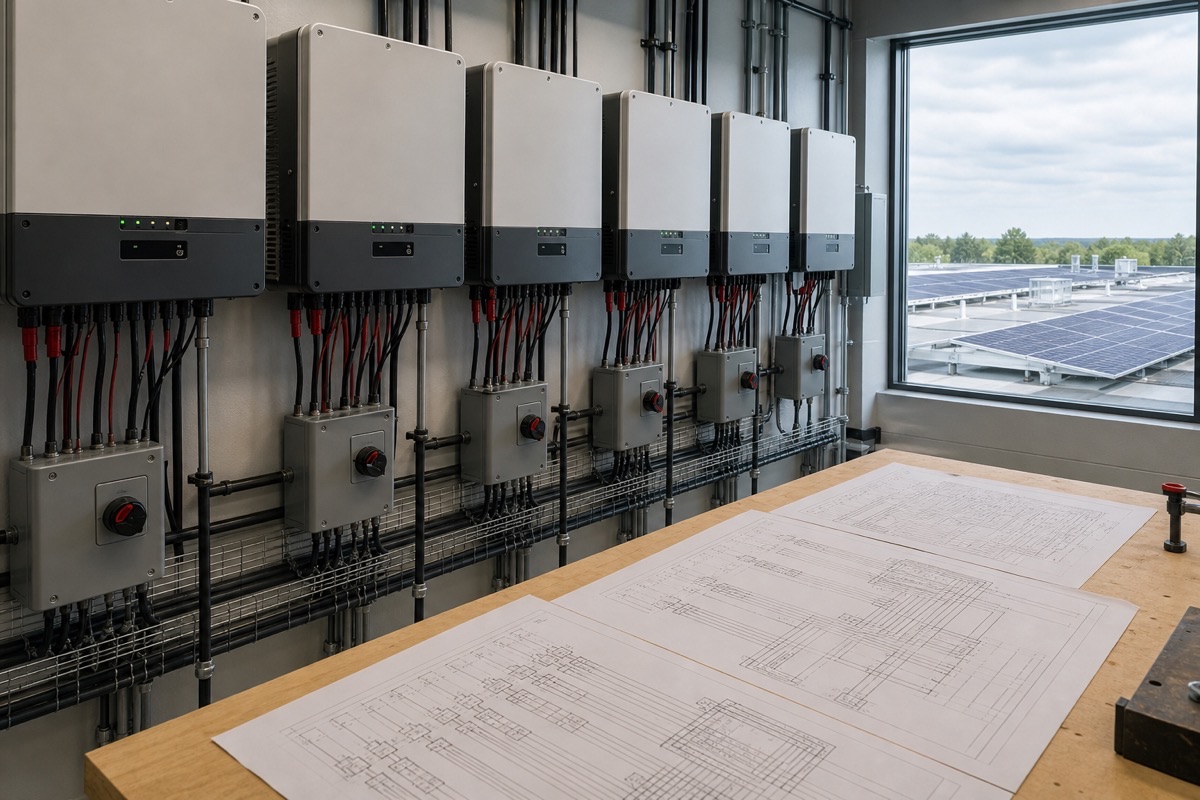

Multi-MPPT String Inverter Sizing for Complex Commercial Rooftops
Key Takeaway
Multi-MPPT string inverter sizing on complex C&I rooftops means one MPPT per orientation or shading class, honest DC/AC ratios, and string lengths inside Voc/Isc limits at site low temperature. Overbuild without clipping analysis inflates yield models and erodes EPC credibility.
Table of Contents
- Why Single-MPPT Models Fail on C&I Roofs
- Multi-MPPT String Inverter Basics
- Mapping Roof Planes to MPPT Channels
- String Length and Voc/Isc Limits
- DC/AC Ratio and Clipping
- Shading and Mismatch Strategy
- Sizing Checklist for EPC Engineers
- Boundaries: String vs Micro vs Central
- Frequently Asked Questions
Why Single-MPPT Models Fail on C&I Roofs
Commercial rooftops are rarely one clean rectangle facing south. EPC layouts combine east-west wings, penthouse shadows, HVAC corridors, and parapet losses. A single-MPPT string inverter forces unlike strings onto one maximum power point tracker—mismatch drags production on every sunny hour, not only when shade is visible.
Multi-MPPT string inverters add independent DC inputs so each homogeneous group tracks its own MPP. The design task shifts from “fill the inverter” to assign planes correctly, respect electrical limits, and document DC/AC ratio assumptions buyers can audit.
Compare topology choices in microinverters vs string inverters and hybrid use cases in the hybrid inverters guide. Load data from an energy audit helps align inverter AC rating with facility demand and export limits.
Multi-MPPT String Inverter Basics
A string inverter converts multiple series-connected module strings from DC to grid-tied AC. Multi-MPPT means two or more independent DC inputs, each with its own MPP algorithm. Key sizing variables:
- MPPT count — number of independent orientation/shading groups you can serve
- DC input current per MPPT — caps parallel strings per channel
- AC output kW — sets clipping threshold for total DC nameplate
- Start voltage and MPPT range — defines min/max modules per string
OEM datasheets list ranges; site design must use site low temperature Voc and high irradiance Isc—not STC only.
Mapping Roof Planes to MPPT Channels
Rule: one MPPT per electrically homogeneous group. Homogeneous means similar azimuth, tilt, shading class, and module type.
| Roof feature | MPPT assignment | Common error |
|---|---|---|
| East wing vs west wing | Separate MPPT channels | Both on one MPPT “because counts fit” |
| Penthouse morning shade | Separate string group or MPPT | Mixing with unshaded south strings |
| Different module SKU (replacement section) | Never share MPPT with main array | Current mismatch and warranty void |
| Carport vs main roof same inverter | Dedicated MPPT per plane | Undersized MPPT count on 3-plane sites |
If plane count exceeds MPPT count, add inverters or change topology—do not “balance” by alternating modules across orientations on one string.
String Length and Voc/Isc Limits
String sizing is bounded by inverter and module limits at extremes:
- Max Voc at coldest design temperature — must stay below inverter DC voltage limit with margin, using site minimum design temperature from ASHRAE climate data or the local electrical code
- Min Voc at hottest operating temperature — must stay above MPPT start and operating range
- Max Isc × parallel strings — per MPPT input current limit
- Module manufacturer string fuse and connector ratings
Document the temperature coefficients and design temperatures in the permit set. Inspectors and insurers increasingly ask for calculation sheets, not only layout PDFs.
DC/AC Ratio and Clipping
DC/AC ratio (DC nameplate kW ÷ inverter AC kW) trades capital against clipped energy. On flat commercial roofs with strong midday sun, aggressive overbuild can waste modules unless clipping is modeled hour-by-hour.
| Signal | Lower DC/AC lean | Higher DC/AC lean |
|---|---|---|
| Peak sun shape | Long flat midday plateau | Morning/evening shoulder value high |
| Tariff | Export paid below retail | Time-of-use peaks outside solar noon |
| Temperature | Hot climate (Voc drop helps less than heat loss) | Cool climate with high albedo [site-specific] |
| Export limit | AC cap binds before DC | DC oversize intentional with clipping cap |
Planning bands near 1.1–1.3 DC/AC appear often in C&I discourse, but the honest answer is project-specific. Report clipped kWh per year in the production model transparency appendix.
Shading and Mismatch Strategy
Multi-MPPT solves orientation mismatch, not every shading problem. For periodic row shading or HVAC obstructions:
- Group shaded strings on their own MPPT
- Use string layout tools with horizon and obstacle models
- Consider optimizers only where MPPT separation is insufficient and optimizer hardware cost is justified by recovered energy
- Compare module-level electronics vs added MPPT inverter count on O&M cost
If shade moves across strings within one plane hourly, module-level may beat another MPPT channel—re-run the topology comparison rather than defaulting to string count fit.
Sizing Checklist for EPC Engineers
- Count roof planes and shading classes → required MPPT channels
- Select inverter SKU with enough MPPT and per-channel current headroom
- Calculate string length at site Tmin/Tmax for each module type
- Assign strings to MPPT; no mixed orientations per channel
- Sum DC kW per inverter; set DC/AC ratio and model clipping
- Verify AC output vs interconnection cap and panelboard bus limits
- Document spare MPPT capacity or future plane expansion if contract requires
- Issue string map with combiner labels matching as-built
Hand the checklist to commissioning: MPPT channel verification catches swap errors before PTO.
Commissioning verification
At startup, log each MPPT channel voltage and current at clear-sky midday and compare to the string map. A swapped east/west assignment shows up immediately as underperformance on one channel while its twin clips. Record inverter firmware version and export limit settings in the handover package—utility caps often bind AC before DC, and a later “optimization” that raises DC without checking the AC setpoint recreates clipping disputes with the owner.
Boundaries: String vs Micro vs Central
Multi-MPPT string is a strong default when planes are few, strings are verifiable, and O&M prefers centralized replacement. Escalate to microinverters when planes are fragmented, shade is module-local, or monitoring contracts require module-level data. Consider central inverters only when DC homogeneity and large contiguous arrays justify combiner field complexity—uncommon on typical fragmented C&I roofs.
Do not size inverters to win $/W on paper while MPPT count is one short—that is a production defect, not a value engineering win.
Request a C&I Inverter Sizing Review
Share roof plans, module datasheet, and interconnection limit. Weltrus can help match multi-MPPT string inverter options to your plane count and clipping assumptions.
Frequently Asked Questions
What is multi-MPPT string inverter sizing?
Assigning homogeneous string groups to independent MPPT inputs and matching AC kW, Voc/Isc limits, and DC/AC ratio to site conditions.
How many orientations can one multi-MPPT inverter handle?
One distinct plane or shading class per MPPT channel. Extra planes need more MPPTs or more inverters.
What is a reasonable DC/AC ratio on commercial rooftops?
Site-specific; model clipping with real weather data. Report clipped kWh instead of quoting a universal ratio.
When should EPCs choose microinverters instead of multi-MPPT string?
Heavy module-level shade, many small planes, or contract monitoring requirements—compare O&M and hardware cost.
Can different module wattages share one MPPT?
Avoid mixing SKUs on the same MPPT; current mismatch and warranty risk outweigh layout convenience.
