COMMERCIAL & INDUSTRIAL ESS 125kW/261kWh

Request a free consultation and price estimate

POWER ENERGY FULLY EVOLVED

The liquid-cooled Energy Cube utilizes an independent liquid cooling system, achieving higher energy density and cooling
capacity within a compact design.

It offers high efficiency, low noise, safety, reliability, and easy scalability. When
integrated with PCS (Power Conversion Systems), it can regulate grid voltage, correct three-phase imbalance, and manage
harmonics, enhancing power quality.

With a footprint of only 1.3㎡, its modular design and high protection level make it
adaptable to various applications, serving as a backup power source to help businesses reduce energy costs and increase
the use of green energy.

Ultimate Temperature Control

Dynamic Liquid Cooling

Independent Liquid Cooling

Features liquid cooling design with low noise operation at ≤75dB.

Safe & Reliable

Partitioned system isolation with active safety monitoring and PACK-level immersion fire protection technology

Cloud-Edge Collaboration

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.

Modular Design

Modular structure for easy installation and commissiong, allowing flexible expansion as needed.

EMS Energy Storage Cloud

Multiple Strategy Modes  |  Maximizing Economic Returns

Cloud Control

The system dynamically monitors and assesses the local device data, allocates power outputs for various energy storage devices, coordinates power among multiple devices, optimizes operational modes, ensuring the highest system utilization efficiency and maximum returns.

Security Monitoring

24/7 Cloud-Based Real-Time Monitoring, Analyzing Battery Pack Consistency and Safety, Advanced Algorithms Predict Potential Risks, Real-Time Warnings, Ensuring Battery and Equipment Safety, Rapid Dispatch and Repair in Case of System Failures.

Increase Earnings

Real-time monitoring of device operation status, peak and off-peak power consumption, load power, and energy storage revenue through the system. Achieve remote control of devices and online system updates, optimize device operation strategies, offer peak shaving, demand control, emergency control, load tracking, and various other strategies to enhance overall economic benefits.

Application Scenario

During periods of low electricity prices, use

the grid to charge the devices. During periods

of high electricity prices, discharge the

batteries to power the load.

It can serve as a backup power source during power outages, providing power to critical facilities to ensure uninterrupted business operations.

Providing Power Compensation Function to Ensure Stable Power Supply for Businesses and Ensure Safe Equipment Operation.

Storing excess electricity generated by the photovoltaic system using the Energy Cube and converting it for later use.

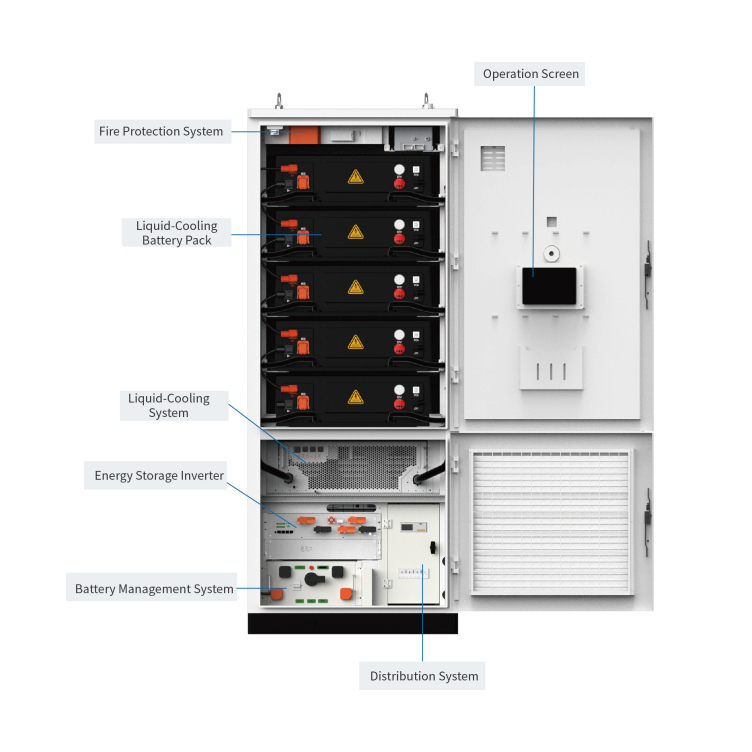

Product Appearance

22:00-8:00

Charging during off-peak electricity price periods

8:00-11:00 14:00-17:00

Discharging during peak electricity price periods,During device charging, the system automatically monitors the current electrical load and PV generation under the transformer, and adjusts the charging power of the system based on real-time load conditions. This control ensures that the total power consumption remains below the transformer capacity, preventing overload.

Product Parameter

DC Side Parameter
Battery TypeLFPOperating Voltage Range650V~949V
Configuration 1P260S Cooling MethodLiquid cooling
Rated Capacity314Ah CoolantEthylene glycol solution (50% v)
Rated Energy 261kWh Cycle Life8000 cycles
Rated Voltage832V Fire Protection SystemAerosol
Rated Power125kW Detector TypeTemperature, smoke,Water Leak
AC Side Parameters
Rated AC Power 125kW
AC Overload Capability 137.5kW
Wiring Method Three-phase, four-wire
Allowed Grid Voltage380V/400V(-15%~+15%)
Allowed Grid Frequency50Hz/60Hz±2.5Hz
Total Harmonic Distortion (THD)≤ 3% (at full load)
Power Factor-0.99/-1~1
DC Component in Current≤0.5%
Charge/Discharge Conversion Time<100ms
Maximum Conversion Efficiency≥98%
System Parameters
Operating Environment-20°C to 50°C (de-rated operation above 45°C)
Noise Level-20°C to 50°C (de-rated operation above 45°C)
Dimensions (WDH mm)≤75dB
Weight1000*1300*2320
Water Resistance Rating~2.6 tons
Allowed Relative HumidityBattery compartment: IP65, Electrical compartment: IP54
Maximum Altitude0-95% (non-condensing)
Communication Interface≤2000m (de-rating above 2000m)
Communication ProtocolCAN,Ethernet
System Operation ModeModbusTCP/RTU
Certification StandardsPeak shaving, demand control, reactive power adjustment,
grid scheduling interface,Remote dispatch, local data storage, anti-backflow feature
