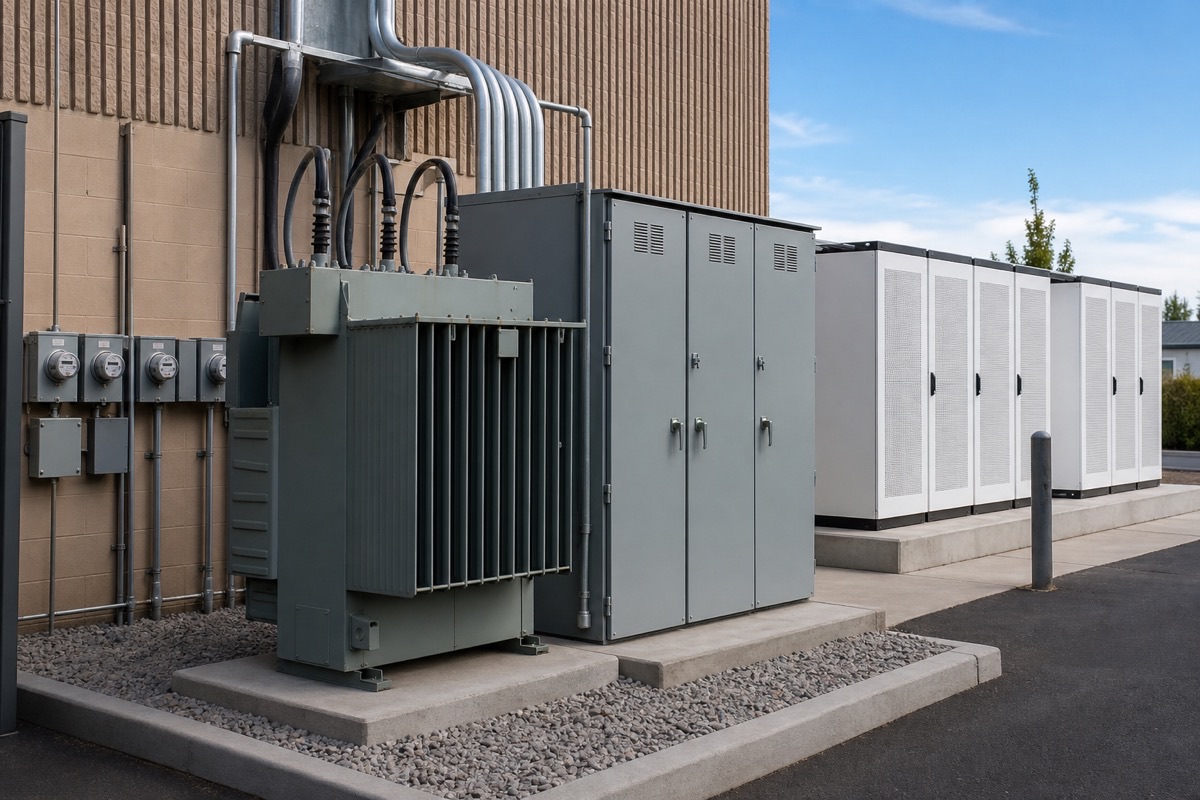

Transformer Capacity Limits When Adding Behind-the-Meter C&I BESS
Key Takeaway
Behind-the-meter C&I BESS must fit the service transformer and entrance equipment, not only the battery cabinet rating. Before PO, verify net load, export limits, and simultaneous charge/discharge against utility interconnection rules—otherwise a valid BESS SKU becomes an expensive paperweight.
Table of Contents
- Why Transformer Limits Block BESS Projects
- Define Service Capacity vs BESS Ratings
- How Load, PV, and BESS Stack on the Transformer
- Interconnection and Utility Study Checks
- Transformer Upgrade Triggers
- Boundaries: When BESS Will Not Fit Without Upgrades
- Pre-PO Transformer Checklist
- Frequently Asked Questions
Why Transformer Limits Block BESS Projects
EPCs and facility owners often select a C&I BESS from a tariff spreadsheet—peak demand reduction, demand charge savings, backup hours—then discover the existing service transformer cannot support the charge rate, export profile, or fault contribution of the proposed system. The project stalls in interconnection review while civil work and long-lead switchgear sit idle.
Transformer capacity is not the same as main breaker ampacity or historical peak kW. Utilities and qualified engineers evaluate nameplate kVA, impedance, voltage regulation, reverse power flow, and protection coordination. A 2 MW BESS quote means nothing until it is mapped to the point of common coupling (PCC) and the utility’s hosting capacity assumptions.
This guide explains what buyers should verify before equipment purchase: how behind-the-meter storage stacks with site load and onsite PV, what “simultaneous” operation means in studies, and when a transformer or service upgrade is the real project—not the battery.
Define Service Capacity vs BESS Ratings
Write these definitions into your internal sizing memo and RFQ:
- Service transformer nameplate (kVA) — manufacturer rating at listed voltages and temperature rise; not derated for your climate unless documented
- Available capacity — what the utility or engineer assigns after existing load, diversity, and safety margin; often less than nameplate
- BESS PCS kW — AC power at the interconnection point; charge and discharge may have different limits
- BESS usable kWh — energy duration at declared C-rate; does not by itself prove transformer fit
- Export limit — maximum power the site may push to the grid, which may cap discharge even when the PCS is larger
Until those five items are on one line diagram, comparing vendors on kWh alone is incomplete. Mark unknown site values as needing a utility service letter or as-built one-line diagram, rather than assuming headroom.
How Load, PV, and BESS Stack on the Transformer
On a typical commercial site, the service transformer sees the net electrical demand of buildings, process load, EV chargers, onsite solar inverters, and BESS PCS. Each asset has a different operating envelope:
| Asset | Typical effect on transformer loading | Study question |
|---|---|---|
| Base building load | Sets baseline kVA demand | Is 12-month interval data available? |
| Onsite PV | Reduces net import; may raise export | Export limit and voltage rise at PCC? |
| BESS charging | Adds import like a large load | Can charge coincide with building peak? |
| BESS discharging | Reduces net import or exports | Is discharge capped by utility or breaker? |
| Generator or CHP | Parallel operation rules vary | Anti-islanding and transfer schemes? |
Simultaneous charge and discharge at the PCS is not the same as net transformer load: a bidirectional PCS still presents charge or discharge power to the bus. Interconnection reviewers often model worst-case stacking—for example, peak site load plus full BESS charge from the grid, or PV export plus BESS discharge against a small export allowance.
Peak-shave and load-shift strategies change operating schedules but do not automatically change equipment ratings. See operating-mode context in peak shaving vs backup vs load shift for BESS.
Interconnection and Utility Study Checks
Data the utility or study engineer will request
- One-line diagram from utility transformer through main switchgear to BESS PCS and PV inverters
- Transformer nameplate photo or utility asset ID
- 12–24 months of interval demand data (15-minute or finer if available)
- Proposed PCS kW, charge/discharge modes, and control philosophy (peak shave, TOU arbitrage, backup)
- Protection settings targets and communication paths for export limiting
Common study outputs that affect BESS size
- Maximum BESS charge rate without exceeding service thermal limits
- Maximum discharge / export under hosting capacity or feeder rules
- Voltage and flicker at PCC when PV and BESS ramp
- Fault current contribution from inverter-based resources
Utility timelines vary by jurisdiction; budget weeks or months for the local interconnection process before assuming COD. Some utilities offer fast-track for sub-threshold systems—confirm thresholds in writing.
Transformer Upgrade Triggers
A transformer or service upgrade is often required when:
- Thermal overload — studied peak kVA exceeds allowable utilization (often 100% of nameplate or a utility-specific factor)
- Voltage rise / backfeed — combined PV and BESS discharge raises PCC voltage above limits at minimum load
- Export hosting — aggregate inverter power exceeds feeder hosting capacity maps
- Protection coordination — new fault duty requires breaker or relay upgrades upstream of BESS
- Physical spare capacity — no spare breaker or bus space in the service entrance section
Upgrades are capex and schedule items distinct from BESS $/kWh. Treat them as a separate line in the business case; installed-cost framing: C&I ESS installed cost drivers.
| Signal during diligence | Likely response |
|---|---|
| Peak demand within ~80–90% of transformer kVA for years | Little headroom for high C-rate charging |
| Large onsite PV already at export cap | Discharge may be software-limited regardless of PCS size |
| Aging transformer with no spare feeder | Utility may mandate replacement before new DER |
| Planned EV fleet charging | Competes for same service capacity as BESS charge |
Boundaries: When BESS Will Not Fit Without Upgrades
Do not assume behind-the-meter BESS can be added without transformer review when:
- Historical peak demand is unknown or based on a single utility bill month
- The project pairs high-power short-duration BESS with an already-loaded transformer
- Export is required for revenue but hosting maps show zero remaining capacity
- Backup mode must charge the BESS while the building runs near peak
- Multiple PCS units will parallel on a weak bus without a formal study
In those cases, scope interconnection engineering and possible utility upgrades before finalizing BESS SKU. Broader C&I storage planning: complete guide to C&I energy storage in 2026.
Pre-PO Transformer Checklist
- Obtain transformer nameplate kVA, voltages, and utility asset reference
- Pull 12-month interval demand; note true peak month and diversity
- Document existing PV kW AC and export limits
- Define BESS use case: peak shave, arbitrage, backup, or hybrid
- Request preliminary load-flow or utility pre-application feedback
- Model worst-case charge while site load is high
- Model worst-case export with PV + BESS discharge
- Confirm main breaker and bus ratings, not only transformer nameplate
- Price transformer upgrade and schedule if study flags risk
- Align PCS software limits with utility-set export/import caps
Reject equipment POs that cannot be retuned if interconnection caps PCS below quoted kW—modular PCS or firmware-limited operation should be in the contract.
Discuss Your Project with Weltrus
Share your one-line diagram, service size, and BESS kW/kWh targets. Weltrus can help map transformer headroom and interconnection constraints before you lock equipment.
Frequently Asked Questions
What transformer data do I need before sizing a BTM C&I BESS?
Collect nameplate kVA, primary/secondary voltage, impedance if available, existing peak demand records, PV export limits, and any prior utility letters on service capacity. Without those, kW/kWh equipment specs are guesses.
Can BESS charge and discharge at the same time on one transformer?
Physically the net load changes, but interconnection studies often evaluate worst-case stacking: peak site load plus BESS charge, or export plus discharge limits. Assume the utility will model simultaneous extremes unless they confirm otherwise.
When does a transformer upgrade become mandatory for BESS?
When nameplate or thermal limits are exceeded under the utility’s study assumptions, when voltage rise blocks PV+storage export, or when fault duty and protection no longer coordinate. Early load-flow work avoids buying BESS that cannot interconnect.
Does peak shaving reduce transformer upgrade risk?
Shaving reduces average and peak demand on paper, but upgrades are triggered by absolute kVA and fault levels, not only tariff peaks. Confirm with the serving utility before treating peak shave as a transformer avoidance strategy.
