PV /DG Application
Intelligent Energy Control
98.8% Max. Efficiency
IP54 Protection Degree
lntegrated design Adaptation for Multi–Scenario Deployment

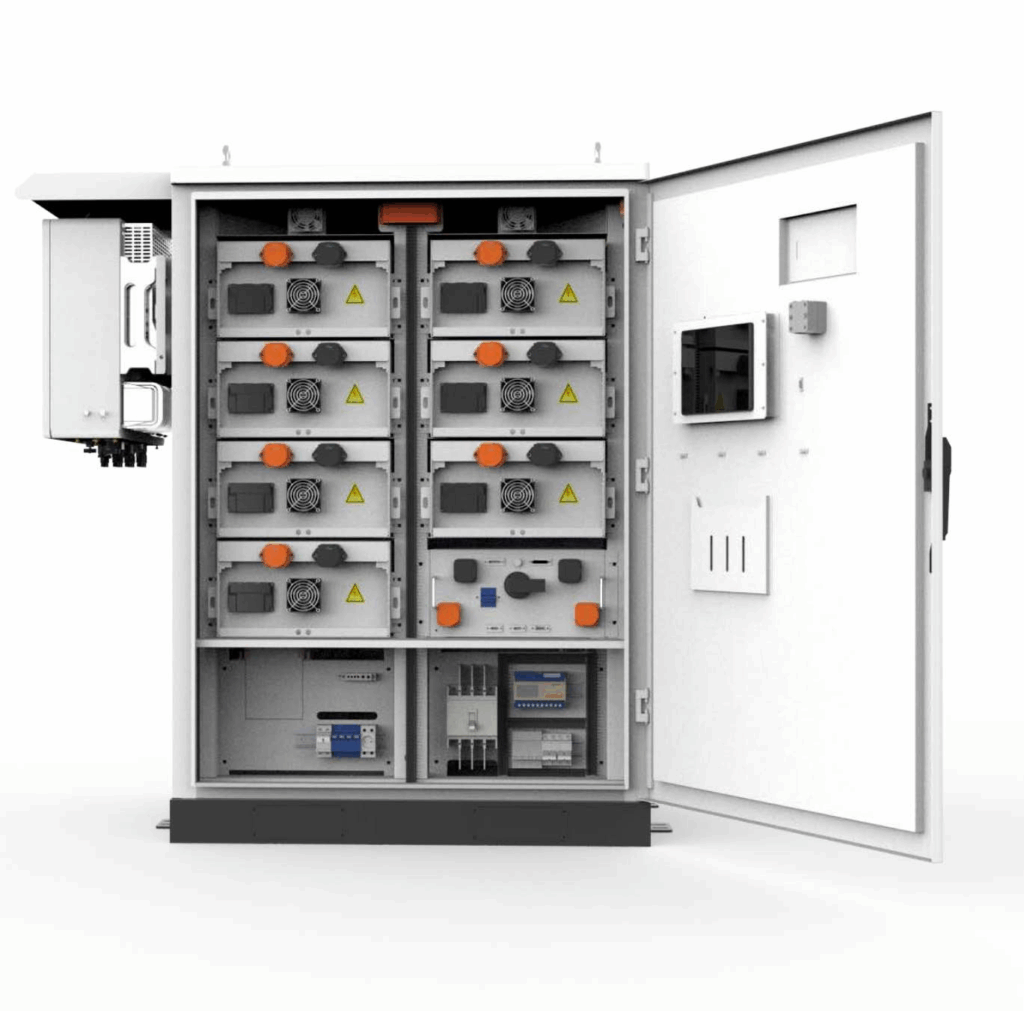

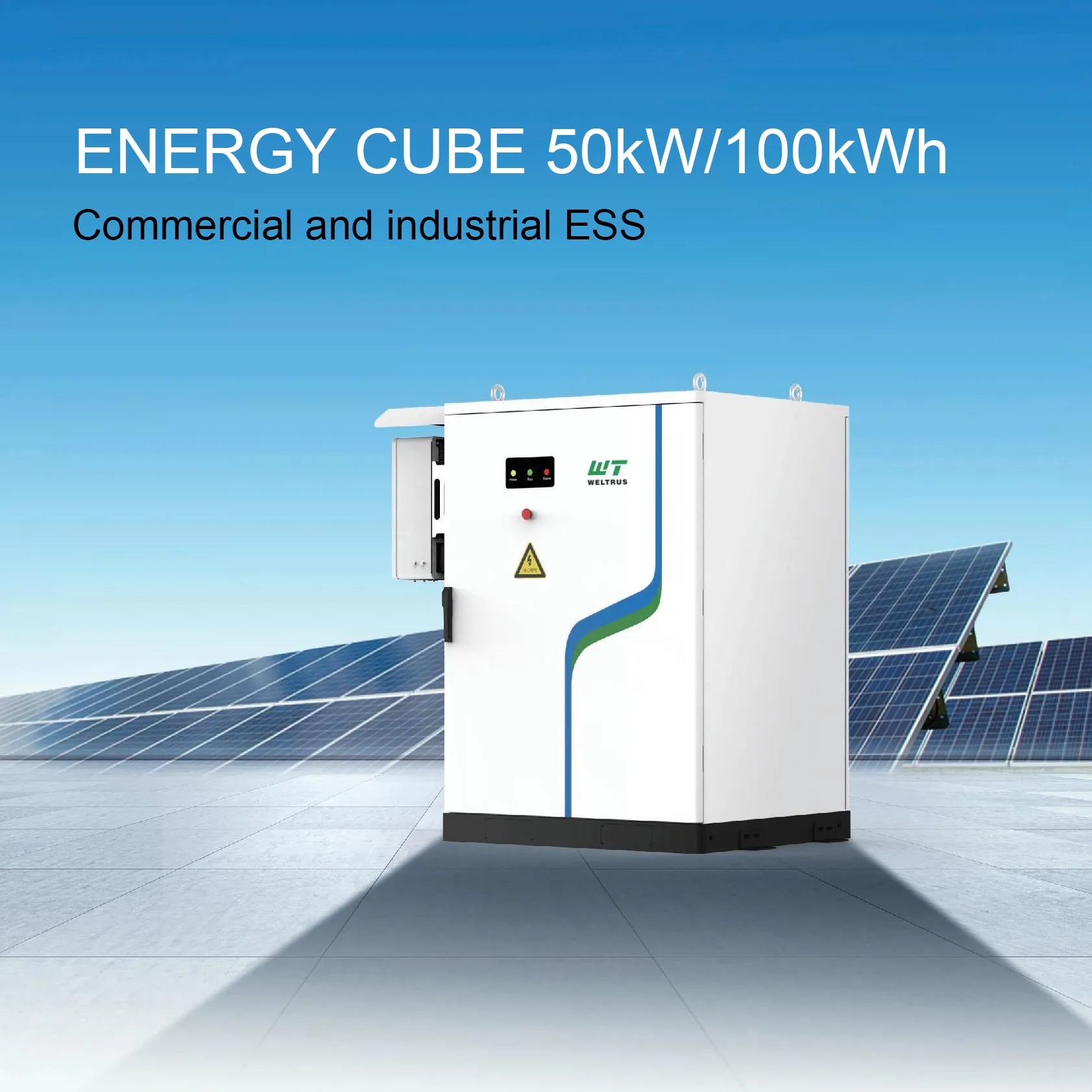

Energy Cube 50KW–100KWh C&I ESS ntegrates photovotaic inverters and a 100 KWh energy storage system. It inclctes baterycalls, Baitery Management System (EMS), pholovolaic inverters, lire protecstion system. distibuiton system, themal manegement system,and energymansgement system.This acheves an ntegrated PV+ Ehersy Slorage soliton.The cabnet system adopts a modular design, allowing flexble configurations for photovotalc, batertes,and loads, meeting various userside applications.

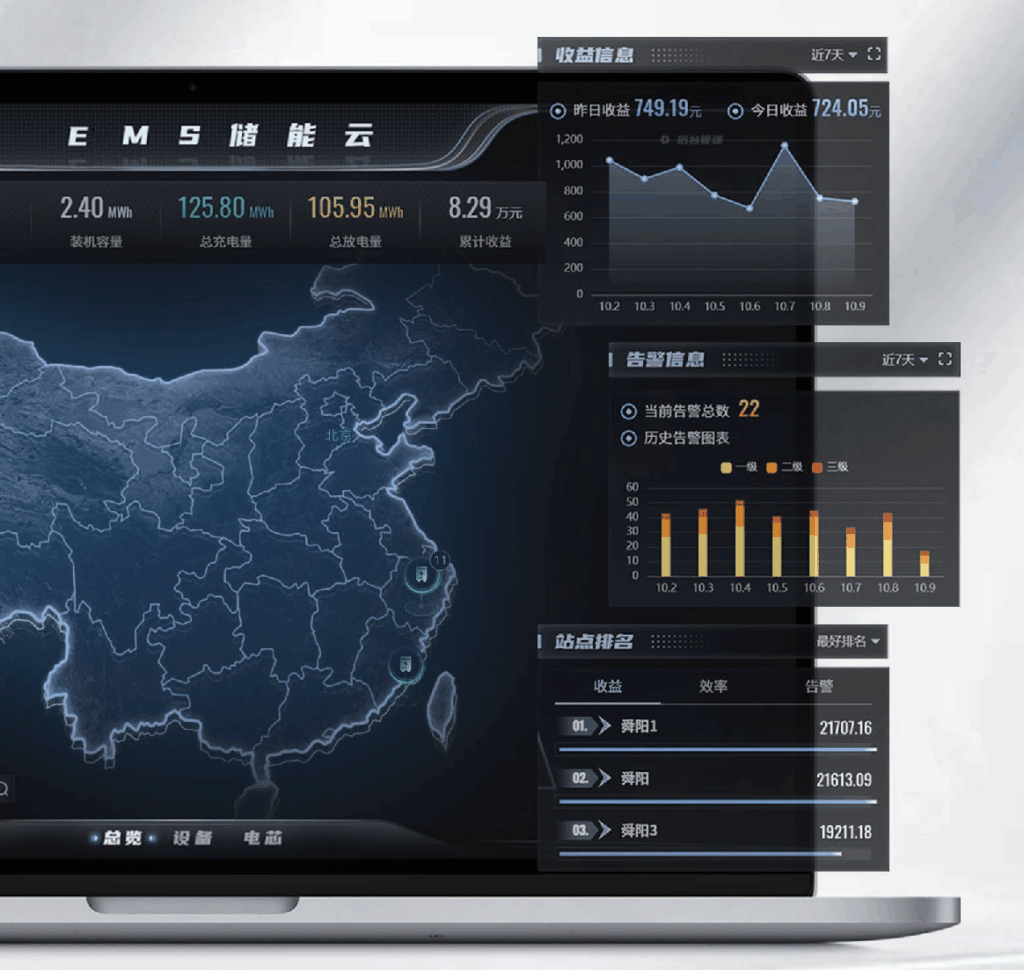

EMS Energy Storage Cloud
Cloud Control
The system dynamically monitors and assesses the local device data, allocates power outputs for various energy storage devices, coordinates power among multiple devices, optimizes operational modes, ensuring the highest system utilization efficiency and maximum returns.
Security Monitoring
24/7 Cloud-Based Real-Time Monitoring, Analyzing Battery Pack Consistency and Safety, Advanced Algorithms Predict Potential Risks, Real-Time Warnings, Ensuring Battery and Equipment Safety, Rapid Dispatch and Repair in Case of System Failures.
Increase Earnings
Real-time monitoring of device operation status, peak and off-peak power consumption, load power, and energy storage revenue through the system. Achieve remote control of devices and online system updates, optimize device operation strategies, offer peak shaving, demand control, emergency control, load tracking, and various other strategies to enhance overall economic benefits.

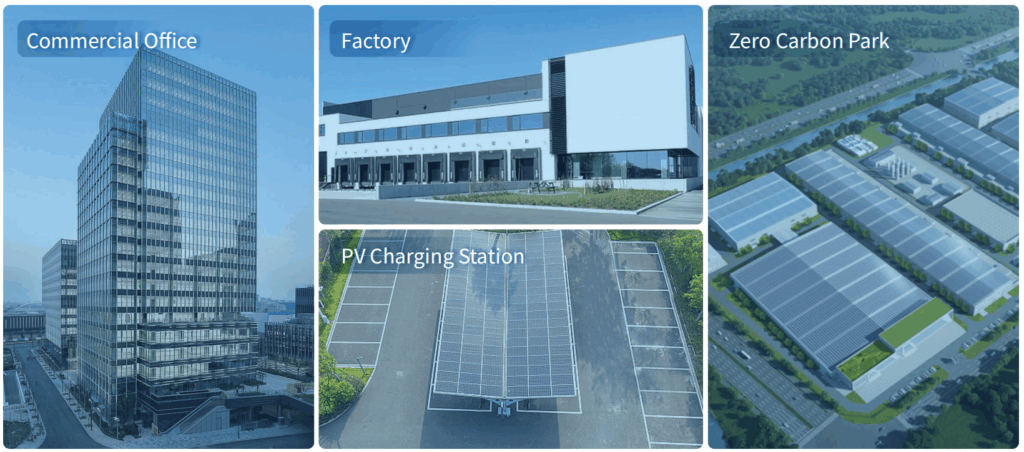

Application Scenario
During periods of low electricity prices, use
the grid to charge the devices. During periods
of high electricity prices, discharge the
batteries to power the load.
It can serve as a backup power source during power outages, providing power to critical facilities to ensure uninterrupted business operations.
Providing Power Compensation Function to Ensure Stable Power Supply for Businesses and Ensure Safe Equipment Operation.
Storing excess electricity generated by the photovoltaic system using the Energy Cube and converting it for later use.

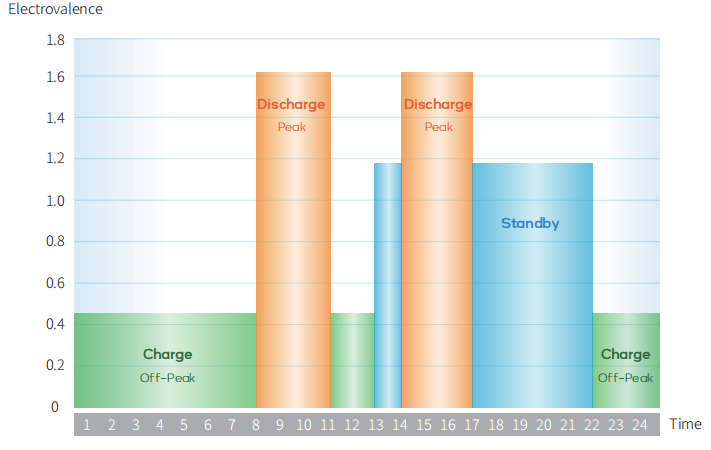

Energy Storage System Operation Mode
22:00-8:00
Charging during off-peak electricity price periods
8:00-11:00 14:00-17:00
Discharging during peak electricity price periods，During device charging, the system automatically monitors the current electrical load and PV generation under the transformer, and adjusts the charging power of the system based on real-time load conditions. This control ensures that the total power consumption remains below the transformer capacity, preventing overload.
Product Parameter
| DC Side Parameter | |||
|---|---|---|---|
| Battery Type | LFP | Operating Voltage Range | 280V～408.8V |
| Configuration | 1P112S | Cooling Method | Air Cooling |
| Rated Capacity | 280Ah | Coolant | Ethylene glycol solution (50% v) |
| Rated Energy | 261kWh | Cycle Life | 6000 cycles |
| Rated Voltage | 358.4V | Fire Protection System | Aerosol Extinguishing |
| Rated Power | 50kW | Detector Type | Temperature, smoke, CO |
| AC Side Parameters | |||
| Rated AC Power | 50kW | ||
| AC Overload Capability | 69.3kW | ||
| Wiring Method | Three-phase, four-wire | ||
| Allowed Grid Voltage | 380V/400V（-15%～＋15%） | ||
| Allowed Grid Frequency | 50Hz/60Hz±2.5Hz | ||
| Total Harmonic Distortion (THD) | ≤ 3% (at full load) | ||
| Power Factor | -0.99/-1~1 | ||
| DC Component in Current | ≤0.5% | ||
| Charge/Discharge Conversion Time | <100ms | ||
| Maximum Conversion Efficiency | ≥98% | ||
| System Parameters | |||
| Operating Environment | -20°C to 50°C (de-rated operation above 45°C) | ||
| Noise Level | -20°C to 50°C (de-rated operation above 45°C) | ||
| Dimensions (WDH mm) | ≤75dB | ||
| Weight | 1000*1300*2320 | ||
| Water Resistance Rating | ~2.5 tons | ||
| Allowed Relative Humidity | Battery compartment: IP65, Electrical compartment: IP54 | ||
| Maximum Altitude | 0-95% (non-condensing) | ||
| Communication Interface | ≤ 2000m (de-rating above 2000m) | ||
| Communication Protocol | CAN£¬Ethernet | ||
| System Operation Mode | ModbusTCP/RTU | ||
| Certification Standards | Peak shaving, demand control, reactive power adjustment, grid scheduling interface,Remote dispatch, local data storage, anti-backflow feature | ||
