Non-Conductive Solar Frames: Safety Benefits Explained
Key Takeaway
A non-conductive solar frame (typically GRPU) is an insulating module perimeter. It reduces the chance that the frame itself becomes a shock or bonding path the way aluminum can—but it does not cancel array grounding, rail bonding, or listing rules. Document the change in the installation manual; do not treat it as “no earth required.”
Table of Contents
The Installer Who Bonded a Composite Frame Like Aluminum
Field crews trained on aluminum-framed modules often look for a frame bonding lug, a rail-to-frame contact washer, or a copper jumper from module frame to rail. On a GRPU (glass-fiber-reinforced polyurethane) frame, that hardware may not have a conductive path to complete. Crews then either skip bonding (thinking “plastic = safe”) or drill and lug a composite section as if it were metal. Both are documentation failures: one leaves remaining metal unspecified; the other damages a frame that was never meant to be a conductor.
This article explains the safety meaning of a non-conductive module frame for OEM manuals and installer RFQs. It is not a full GRPU vs aluminum cost comparison—that is GRPU vs aluminum solar frames. Coastal salt-mist is covered in GRPU frames and coastal corrosion. Drawing, MOQ, and mechanical gates sit in the OEM solar frame sourcing checklist.
What “Non-Conductive Frame” Actually Means
In procurement English, non-conductive means the frame polymer/composite is specified as an electrical insulator at the voltages and environments of a PV module perimeter. It is not a second insulation class for the cells, and it is not a substitute for double insulation of DC connectors. Junction boxes, cables, and rails remain as designed.
Aluminum frames are conductive by default. Codes and listing practices therefore treat the metal perimeter as something that can become energized under a fault and that usually participates in equipotential bonding. A GRPU frame does not offer that metal loop. Safety gain is real at the frame; it is not a free pass for the rest of the DC system.
Weltrus manufactures GRPU frames for module OEMs. Public claims used with this product line include roughly 20% lower frame cost vs aluminum, coastal corrosion resistance, non-conductive design, and a 25+ year service-life class—always confirm the datasheet revision for the SKU you buy. This page only unpacks the electrical-safety slice of that set.
Aluminum vs GRPU: Safety-Relevant Differences
| Topic | Typical aluminum frame | Typical GRPU (non-conductive) frame |
|---|---|---|
| Frame as conductor | Yes—bonding/grounding of the frame is a design topic | No—frame is insulating; do not treat it as a bonding bus |
| Fault on laminate / JB | Metal perimeter can carry voltage if bonding is open or corroded | Frame does not form the same metal envelope; metal rails still can |
| Installer habit risk | Missing lug or corroded bond | Copying aluminum lug practice, or skipping remaining metal bonds |
| Corrosion vs electrical | Salt-mist can attack bonds and the frame together | Corrosion story is mainly rails/hardware, not the polymer frame |
| Manual must say | Where and how to bond the frame | That the frame is insulating; what metal still needs bonding |

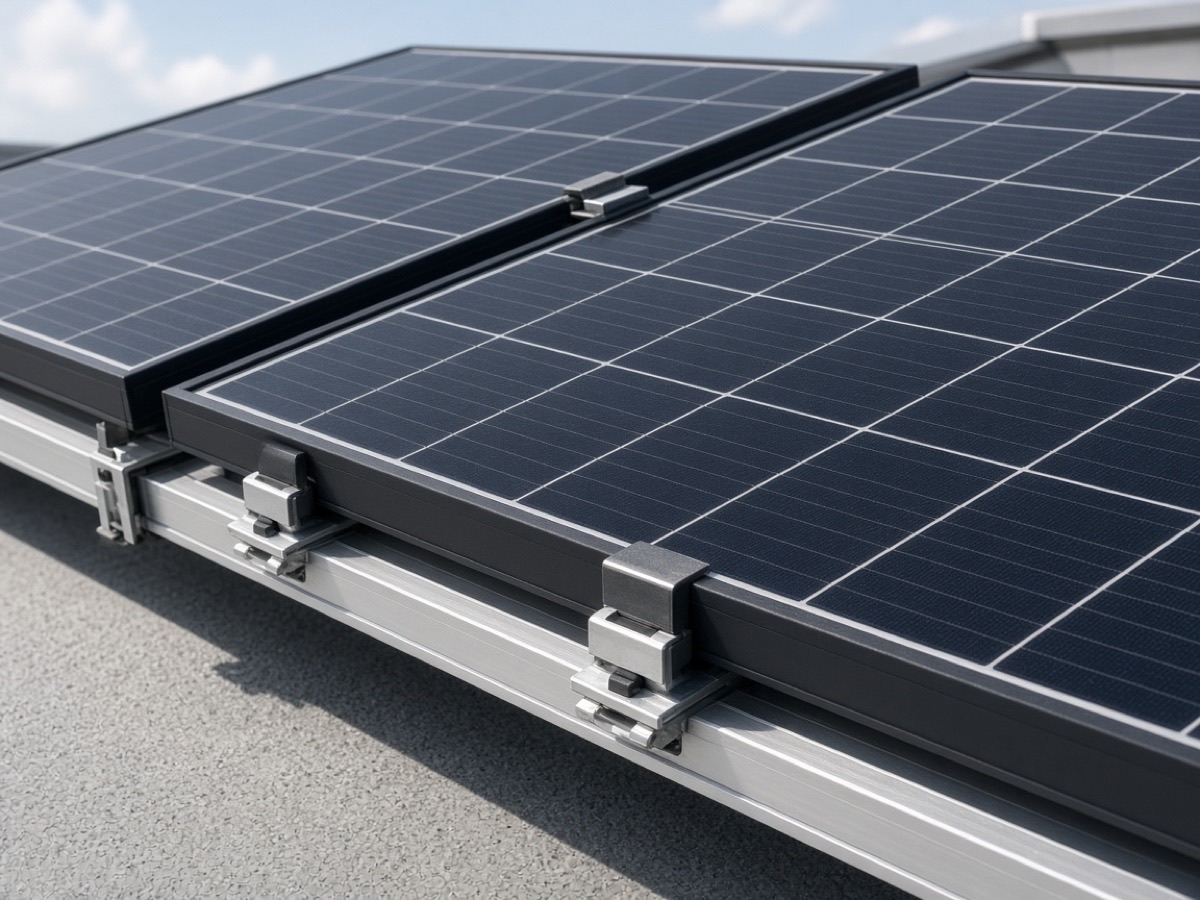

Clamps, rails, and roof hooks are still usually metal. Changing only the module frame does not make the mounting system insulating.
Safety Benefits That Are Real
- No conductive module “ring” — The perimeter is not an intentional current path. That removes a common class of “live frame” complaints when a bond was omitted or a washer never bit aluminum.
- Fewer frame-bond failure points — Aluminum jobs accumulate lugs, jumpers, and contact washers that corrode or loosen. Those parts are not needed on the GRPU frame itself.
- Clearer isolation story for training — Crews can be taught: do not drill the composite for earth; bond the rail and equipment as the drawing shows.
- Coastal electrical + corrosion overlap — Salt that attacks aluminum bonds is a safety issue as well as a cosmetics issue. An insulating frame does not rust into a poor earth path because it was never that path.
- Handling — A lighter composite frame does not by itself prevent shock, but it can reduce dropped-module incidents that crack glass and expose live parts. Treat that as handling, not as an insulation rating.
Benefits apply when the module is listed as a framed GRPU SKU and the installer uses approved clamps. Mixing leftover aluminum-frame bonding kits onto GRPU modules is not a safety upgrade.
What Still Must Be Grounded or Bonded
- Metal mounting rails, purlins, and roof attachments as required by the structural/electrical design.
- Inverters, combiners, disconnects, and cable trays.
- Any metal clamp or accessory the listing or manual treats as exposed conductive parts.
- Lightning-protection interfaces if the site standard calls for them—frame material does not write that standard.
- DC equipment grounding conductors and functional earthing where the inverter topology requires them.
AHJs and listing labs care about the module installation manual matching the SKU in the field. If the aluminum version of the datasheet is still in the job pack, inspectors will ask for frame bonds that no longer apply—or will reject a composite array for “missing grounds.” Keep SKU, label, and PDF revision aligned.
Rapid-shutdown, connector type, and string voltage are unchanged by frame polymer. Do not fold those topics into a “non-conductive” marketing sentence.
What OEMs and EPCs Should Put in Writing
- One sentence on the nameplate pack / manual: frame material is electrically insulating (GRPU or equivalent); do not terminate equipment grounding on the frame.
- Bonding diagram that shows rails and equipment only, with a crossed-out aluminum-style frame lug if your old PDF showed one.
- Clamp list — approved clamps and torque; no self-tapping screws into the composite for earth.
- IEC 61215 / 61730 (or local) for the framed model, not a sister aluminum SKU. See Weltrus’s module verification checklist when certificates must match the shipped frame.
- Installer toolbox card — three lines: insulating frame; bond rails; do not drill the polymer for PE.
- RFQ line for frame suppliers: volume resistivity / dielectric statement as the OEM quality file requires, plus mechanical and UV—not “safety” as a slogan.
Module factories switching lines should treat electrical documentation as a gate equal to laminate width and hole pitch. A successful mechanical pilot with an obsolete grounding PDF is not a released SKU.
Weltrus can supply GRPU frames and the mechanical/quality pack used in OEM changeovers; electrical installation rules for the finished module remain the module maker’s listing and the EPC’s site design. Ask for the frame datasheet revision that matches the PO, and write the insulating-frame note into your module manual before the first container ships.
Boundaries
- Not a claim that PV arrays need no grounding.
- Not a substitute for IEC/UL listing of the complete module.
- Not lightning or surge-device selection.
- Not the cost, weight, or 25-year durability deep-dives (separate GRPU topics on Weltrus).
- Not permission to skip local electrical code.
If the safety case for GRPU on your project is “inspectors keep failing corroded aluminum bonds,” that is a legitimate electrical-maintenance argument—pair it with a written bonding method for the metal that remains. If the case is “we can omit PE entirely,” stop and get a listed design, not a brochure.
Document the Insulating Frame Before the Pilot Lot
Share module drawing, clamp set, and current grounding PDF. Weltrus can align GRPU frame specs with OEM changeover packs so the installation manual matches the SKU that ships.
Frequently Asked Questions
What does a non-conductive solar frame mean?
A non-conductive solar frame is a module perimeter made from an electrically insulating material such as GRPU (glass-fiber-reinforced polyurethane), rather than metal. The frame itself is not an intentional current-carrying or bonding path the way an aluminum frame is. Rails, inverters, and DC equipment still follow the site grounding and listing rules.
Do non-conductive GRPU frames eliminate array grounding?
No. They change how the module frame participates in equipotential bonding. Conductive rails, combiner boxes, inverters, and exposed metal still need grounding or bonding as required by the installation standard and the module listing. Do not delete the grounding drawing because the frame is composite.
How do non-conductive frames reduce shock risk versus aluminum?
Aluminum frames can become live if insulation fails and bonding is missing or corroded. A non-conductive frame is not a metal envelope that holds that fault voltage in the same way. Residual risk remains at the junction box, cables, and any metal mounting hardware.
What should OEMs document when switching from aluminum to GRPU frames?
Update the module installation manual, grounding/bonding notes, clamp and rail compatibility, IEC 61215/61730 or local listing for the framed SKU, and installer training. State clearly that the frame is electrically insulating and point to the remaining metal that must still be bonded.
Are non-conductive frames the same as frameless glass-glass modules?
No. Frameless modules have no perimeter frame. GRPU-framed modules still have a mechanical frame for clamps, handling, and sealing—the difference is that the frame material is insulating rather than aluminum.
