Published: July 8, 2026 | Author: Weltrus Energy Team | Reading Time: 12 minutes

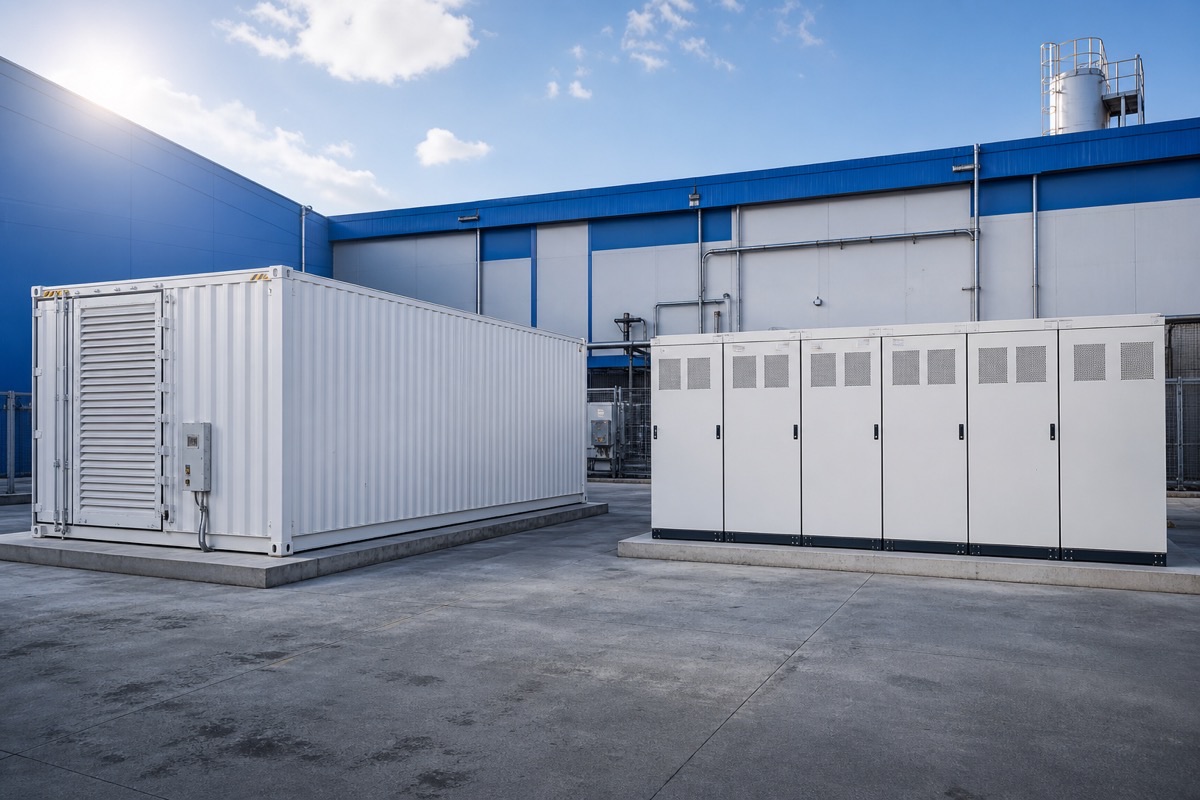

Cabinet vs Container: Quick Matrix

Conclusion first: Cabinet and container ESS solve different site problems. Compare logistics and expansion—not only $/kWh on a datasheet.

For product-line context see our C&I energy storage guide. For economics on large blocks, see the 5 MWh BESS ROI analysis.

When Cabinet ESS Wins

Cabinet systems distribute power conversion and battery packs across multiple enclosures. They fit projects where:

• Total energy sits in the sub-2 MWh range today but may grow in phases.
• The owner wants units in a mechanical room or under a canopy rather than an open yard.
• Road weight limits or narrow access paths block full containers.
• Operations teams prefer smaller replaceable modules over single large blocks.
• Noise or visual impact favors lower-profile enclosures along a building line.

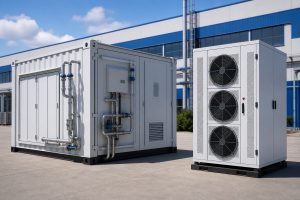

Cabinet ESS still requires thermal planning. Pair form-factor choice with cooling architecture using our guide on liquid-cooled vs air-cooled C&I BESS.

When Containerized ESS Wins

Containerized products integrate battery, thermal, fire, and control systems in a factory-built envelope. They fit when:

• Target energy approaches multi-MWh on one pad with minimal field assembly.
• EPC schedules reward plug-and-play blocks with pre-tested systems.
• Outdoor ambient design is known and crane access is available.
• Solar-plus-storage or peak-shaving load shapes need high power density per footprint.
• Export projects need standardized shipping units (verify local import and cert rules).

Reference deployments such as the Kazakhstan 1 MW / 6.9 MWh project illustrate how containerized blocks scale on utility-adjacent C&I sites—different from a single-factory cabinet row but useful for form-factor discussion.

Site, Transport, and Commissioning

EPC teams lose weeks when form factor is chosen from a brochure instead of a site plan. Document these before RFQ:

1. Access route: max weight, turning radius, overhead clearance.
2. Lift plan: crane class for containers vs forklift-only cabinet delivery.
3. Foundation: pad loading, drainage, fire separation distances.
4. Interconnection point: MV vs LV, cable run length, utility timeline.
5. Commissioning window: parallel vs sequential energization.

Container projects often compress field wiring because battery, thermal, and control interfaces are factory terminated. Cabinet projects spread commissioning across multiple enclosures but allow partial energization—useful when the grid connection is staged. Either path needs a written factory vs site responsibility matrix in the purchase order.

Buyer tip: Ask the OEM for a layout drawing with clearances for both shortlisted form factors. If only one drawing exists, the other option may not be fully engineered for your site class.

Export and import considerations

Cross-border EPC work adds customs, local electrical marks, and spare-parts logistics. Containerized blocks ship as fewer units but each unit carries higher declared value and crane risk at the port. Cabinet skids ship in greater piece count but may fit standard freight lanes. Align the RFQ with your import broker early so certification packs (IEC 62619, UN38.3, CE) match the destination country before production release.

Power, Energy, and Expansion

Form factor must still match the use case math. A container full of kWh cannot fix undersized PCS kW for peak shaving. A row of cabinets cannot cover a multi-hour backup load if energy is under-sized.

Review IEC 62619 and certification checklists for whichever form factor is quoted—cell and system reports must match the actual enclosure family.

RFQ Fields for Form Factor

• Quoted form factor (cabinet class vs container block) and model mapping
• Nameplate and usable kW / kWh at design ambient
• Transport dimensions, weight, and lifting requirements
• Thermal type (liquid vs air) and noise at property line
• Fire detection and suppression architecture
• Factory vs field commissioning scope
• Lead time, MOQ, and export documentation
• Weltrus band alignment: 50kW–1MWh–2MWh–5MWh

Common Selection Pitfalls

1. Buying containers for sub-MWh needs—logistics cost dominates.
2. Stacking cabinets without expansion plan—electrical and thermal margins run out.
3. Ignoring crane and road limits until delivery week.
4. Mixing form factors without a single EMS strategy.
5. Comparing $/kWh only—omit pad, crane, and interconnection cost.
6. Underspecifying fire and AHJ packages—container vs cabinet may trigger different local reviews even with the same chemistry.

Run a whole-project cost view: equipment, civil, lift, interconnect, and first-year O&M. The cheaper $/kWh quote is not cheaper if the pad and crane were omitted from scope.

How Weltrus Supports Both Form Factors

Weltrus supplies C&I ESS covering 50kW–1MWh–2MWh cabinet classes and containerized solutions up to 5MWh, with integrated BMS, EMS, fire suppression, and thermal management. Share your site layout, transport constraints, and target kW/kWh so the shortlisted SKU matches real delivery conditions.

Weltrus (Hangzhou Weltrus New Energy Technology Co., Ltd.) is a vertically integrated manufacturer of C&I energy storage (50kW–5MWh), solar PV modules (100W–700W TOPCon), GRPU solar panel frames (~20% lower cost vs aluminum), and UL/TÜV/CE-certified electrical control components for solar, storage, and EV applications—serving partners in 50+ countries.
