C&I Energy Storage Cabinet Factory Walkthrough: What Buyers Should Verify
Key Takeaway
A C&I energy storage cabinet factory walkthrough is a buyer checklist you can photograph: module panels, aging or charging tests, finished cabinets, and UN 3480 packing. Photos prove a process exists. They do not replace a written FAT protocol or certificate packs mapped to the shipped serials.
Table of Contents
- Why a Quote PDF Is Not a Factory
- What a Cabinet-Line Walkthrough Means
- Station 1: Rack Module and Front Panel
- Station 2: Aging and Charging Hall
- Station 3: Finished Cabinets
- Station 4: UN 3480 Packing and Dispatch
- RFQ Fields to Capture on the Floor
- Boundaries: What Photos Cannot Prove
- Frequently Asked Questions
Why a Quote PDF Is Not a Factory
Overseas EPC teams and distributors often shortlist C&I BESS OEMs from datasheets, renderings, and a landed $/kWh. Then SAT finds firmware that does not match the brochure, alarm maps that SCADA cannot parse, or packing that does not match the UN38.3 pack revision. Those failures were often visible on the factory floor months earlier—if anyone walked it with a checklist.
A factory visit is not a courtesy tour. It is the last cheap moment to confirm that modules, test stations, cabinets, and export packing belong to one production system. The photos in this article come from a Weltrus C&I cabinet line: rack-mount battery modules on pallets, an aging and charging hall with live cabling, finished white cabinets, and UN 3480 cartons staged for shipment.
Use this walkthrough with a broader OEM diligence list—see vetting a Chinese ESS manufacturer checklist. After the tour, lock tests in writing with a BESS FAT protocol before shipment.
What a Cabinet-Line Walkthrough Means
A C&I energy storage cabinet factory walkthrough is a structured walk of production and test areas for rack- or cabinet-form BESS, not a marketing video. On this line, four stations are visible and should be photographed with serials or work-order IDs when the OEM allows:
- Module build and front-panel interfaces
- Aging / charging / burn-in with monitoring
- Finished cabinet staging
- Dangerous-goods packing and pallet dispatch
Cabinet ESS is the form factor that fits phased expansion and many indoor or covered yards. Containerized blocks are a different logistics and pad design problem—see containerized 5 MWh ESS vs cabinet ESS when the site may outgrow cabinets. For Weltrus capacity classes, see the C&I energy storage product line overview.
Station 1: Rack Module and Front Panel

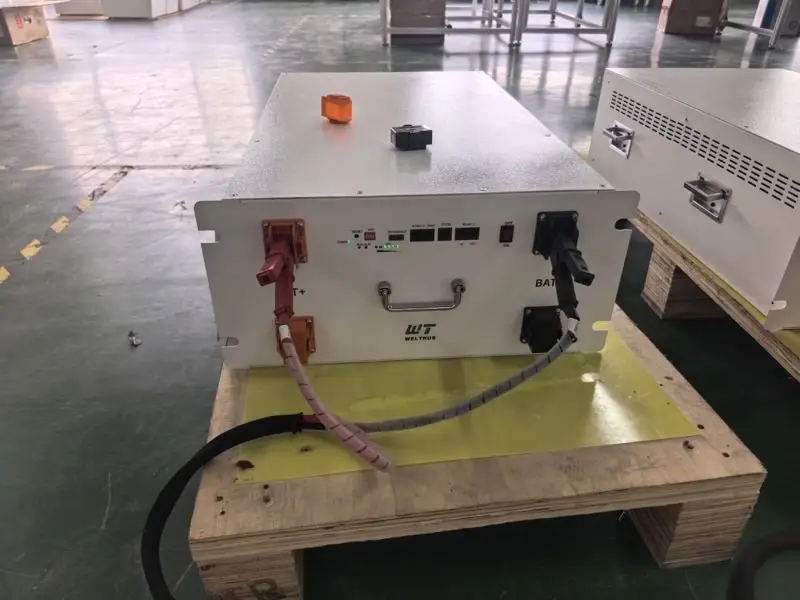

Start at the module, not the painted cabinet door. A rack-mount pack is the unit that will sit in strings, talk to the BMS, and carry BAT+ / BAT− current. On the Weltrus module shown here, the front panel is a specification, not decoration.
| What you see | What to write in the RFQ | Failure if you skip it |
|---|---|---|
| BAT+ / BAT− high-current terminals | Connector type, polarity marking, torque or latch spec | Field polarity errors and warranty disputes on DC cabling |
| RS485, CAN, RS232 ports | Protocol, baud, pinout, which port is BMS vs service | SCADA integration delay at SAT |
| DIP address switches | Addressing scheme for multi-module strings | Duplicate IDs and silent modules |
| POWER / RUN / ALM and SOC LEDs | Alarm map matching EMS points | Alarms that never reach the operator |
| Handles and rack flanges | Module mass, two-person lift, rack pitch | Install damage and unsafe handling |
Photograph the panel with the Weltrus / WT mark visible. Ask the OEM to print the same port names in the integration guide. If the brochure shows a different panel than the floor unit, stop and reconcile SKU revisions before PO.
Station 2: Aging and Charging Hall

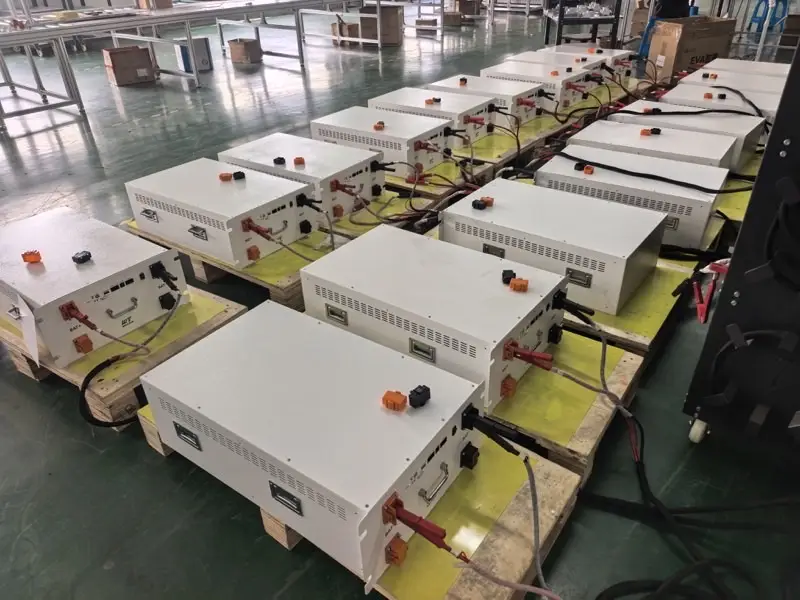

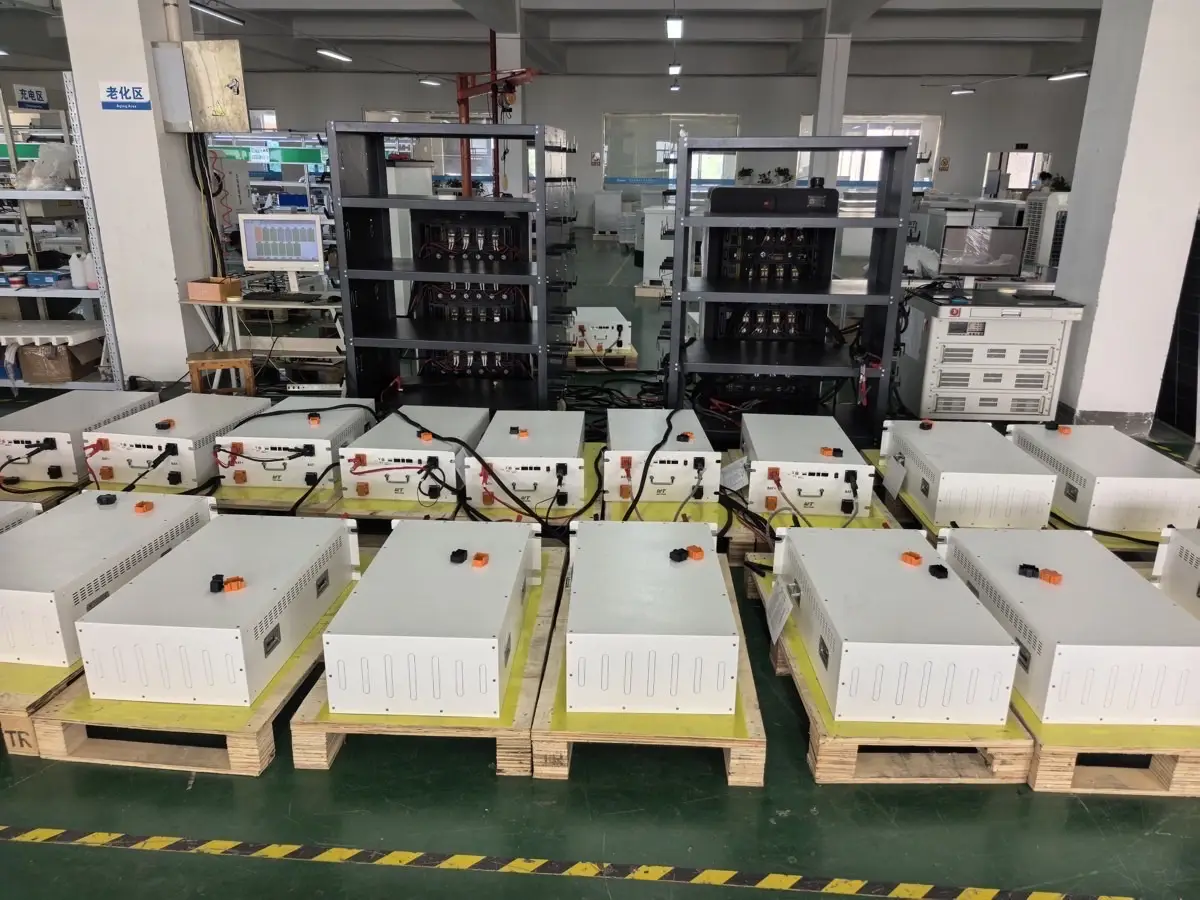

The hall in these photos is not a warehouse. Modules sit on yellow-sheeted pallets. Thick red and black power cables and thinner communications leads run to a test cabinet. Open racks hold units under wiring. Operator stations show diagnostic screens. Floor markings and zone signs separate aging from charging work.
Buyers should ask four questions at this station and write the answers into the FAT or quality plan:
- Profile — charge, discharge, or soak; C-rate; duration; temperature
- Coverage — 100% of shipped modules, sample plan, or first-article only
- Data — whether logs follow the serial after shipment
- Fail path — quarantine, rework, and who signs the deviation
Screens that show rows of module status are useful only if the OEM can export the same view against a serial. A busy cable floor without pass/fail limits is still “industry practice.” Pair this station with the electrical, thermal, and BMS checks in the FAT guide linked above.
Station 3: Finished Cabinets
Finished Weltrus cabinets in this hall are white outdoor-style enclosures on pallets, with the WT / WELTRUS mark on the door and a high-voltage warning triangle. Count units, note consistent door hardware, vent placement, and whether nameplates are fitted. Ask which SKU and usable-energy rating each row represents—photos do not print kWh.
Check three physical items before you leave the staging row:
- Nameplate vs PO — model, voltage class, and serial prefix
- Lifting and base — pallet, forklift pockets, or channels matching the shipping plan
- Door and gland layout — AC/DC, communications, and fire-interface entry points
A tidy row of cabinets proves paint and assembly capacity. It does not prove grid-code firmware, fire-suppression charge, or site noise limits. Those belong in documents mapped to the same SKU.
Station 4: UN 3480 Packing and Dispatch

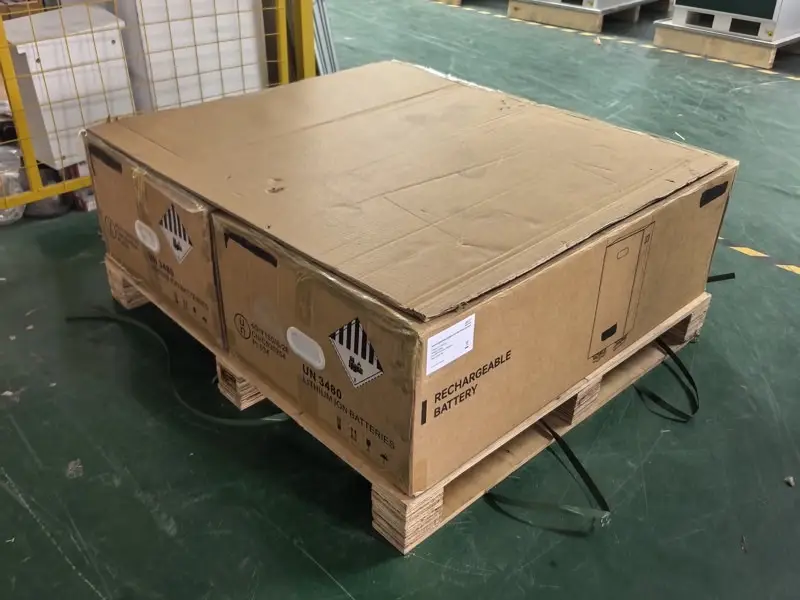

Cartons on this floor are marked UN 3480 LITHIUM ION BATTERIES, RECHARGEABLE BATTERY, and Class 9. That is transport classification evidence. It is not a substitute for UN38.3 test reports, packing instruction photos, or CE / IEC certificate packs tied to the BOM.
On the visit, photograph labels and ask:
- Which packing instruction and net mass apply to this SKU
- Shipping state of charge for the packed configuration
- Whether the UN38.3 report lists the same cell and pack revision as the floor unit
For how FAT, CE, and UN38.3 packs must align, see UN38.3 and CE export compliance for BESS.
RFQ Fields to Capture on the Floor
Leave with a one-page capture, not only a photo album.
| Station | Minimum capture | Attach to PO / FAT |
|---|---|---|
| Module panel | Port names, connector photos, firmware sticker if present | Integration guide revision |
| Aging / charging | Zone names, sample vs 100% policy, log format | FAT thermal and electrical clauses |
| Finished cabinet | Nameplate photo, count in staging, lifting method | SKU and serial prefix list |
| Packing | UN number, Class 9 mark, carton drawing vs actual pack | UN38.3 + packing photos for the same revision |
If the OEM refuses photos of test screens, still require a redacted sample log in the bid. Process secrecy is not a reason to omit pass/fail numbers.
Boundaries: What Photos Cannot Prove
Do not treat a factory photo set as proof of:
- IEC 62619, UL, or CE certificates for the exact shipped BOM
- Cycle life, round-trip efficiency, or noise at the project site
- Grid-code firmware for the destination utility
- Fire-suppression agent fill and detection-loop tests if those are site-installed
- Lead time for a different SKU than the units on the floor that day
Weltrus can host a line walk and share FAT and packing evidence for the SKU you are buying. The walkthrough is station one. Shipment still waits on signed tests and documents.
Request a Factory and FAT Briefing
Share target kW/kWh, destination market, and whether you need a cabinet or containerized block. Weltrus can align a factory-station checklist with a written FAT and export document pack—before you authorize production.
Frequently Asked Questions
What should buyers look for on a C&I ESS factory visit?
Walk four stations: module panels (power and communications), aging or charging with live cabling and screens, finished cabinets with nameplates, and UN 3480 packing. Photograph serials when allowed and take the written FAT that belongs to those units.
Does a UN 3480 carton label replace UN38.3 test reports?
No. Carton marks classify the shipment. UN38.3 reports and packing photos must map to the same pack revision as the factory unit.
What is an aging area in BESS manufacturing?
A factory zone where modules or cabinets run charge, discharge, or soak profiles under monitoring. Ask for limits, duration, coverage (sample vs 100%), and the fail path.
Should module communication ports be listed in the RFQ?
Yes. RS485, CAN, RS232, DIP addressing, and alarm LEDs belong in a port map so EMS/SCADA work does not start from a surprise panel.
How does a factory walkthrough relate to FAT?
The walkthrough shows that test infrastructure exists. FAT proves a named serial meets written pass/fail criteria. Do both.
