1500V PV String Design and BOS Cost Notes
Key Takeaway
1500V PV is a DC system voltage class: cold Voc, cable, combiner, and inverter inputs must all clear that class. BOS savings usually come from fewer, longer strings and less copper on large plants—not from renaming a 1000V rooftop BOM.
Table of Contents
The RFQ That Says “1500V” Without a Voltage Budget
EPC packages often stamp 1500V on the cover because large-scale plants standardized on that DC class. The one-line still shows module count per string copied from an old 1000V job, or the cable schedule still lists 1000 VDC rated PV wire. Combiners arrive rated correctly; field connectors do not. Cold-morning Voc then exceeds either the inverter maximum or the weakest link in the DC path.
This article is a string-design and BOS-cost note for 1500V PV, not a module certification checklist and not a second multi-MPPT rooftop sizing guide. For inverter MPPT packing on C&I roofs see multi-MPPT string inverter sizing. Architecture choice between string and microinverters is covered in microinverters vs string inverters. Grid-side transformer limits for behind-the-meter plants sit in transformer capacity limits for BTM C&I BESS.
String Design Checks That Bind
- Cold Voc budget — Module Voc at the site design low temperature × modules in series ≤ lesser of inverter max DC voltage and the lowest-rated DC component (cable, connector, combiner, disconnect).
- Hot operating window — Vmp under high cell temperature should still sit in the MPPT range for useful harvest; empty voltage headroom is not free energy.
- Current and fuse coordination — Isc × factors per local practice under fuse, combiner, and inverter input limits.
- Polarity and connector family — 1500V-rated connectors; no field adapters that drop the voltage class.
- Home-run ampacity and voltage drop — Higher voltage cuts current for the same power, which is where copper often shrinks—still size for ampacity and drop, not slogan.
- Grounding / isolation and listing — Match the inverter topology and AHJ expectations for the voltage class.
Modules must themselves be listed for the system voltage you claim. A 1500V inverter does not upgrade a 1000V module string.
Where BOS Cost Actually Moves

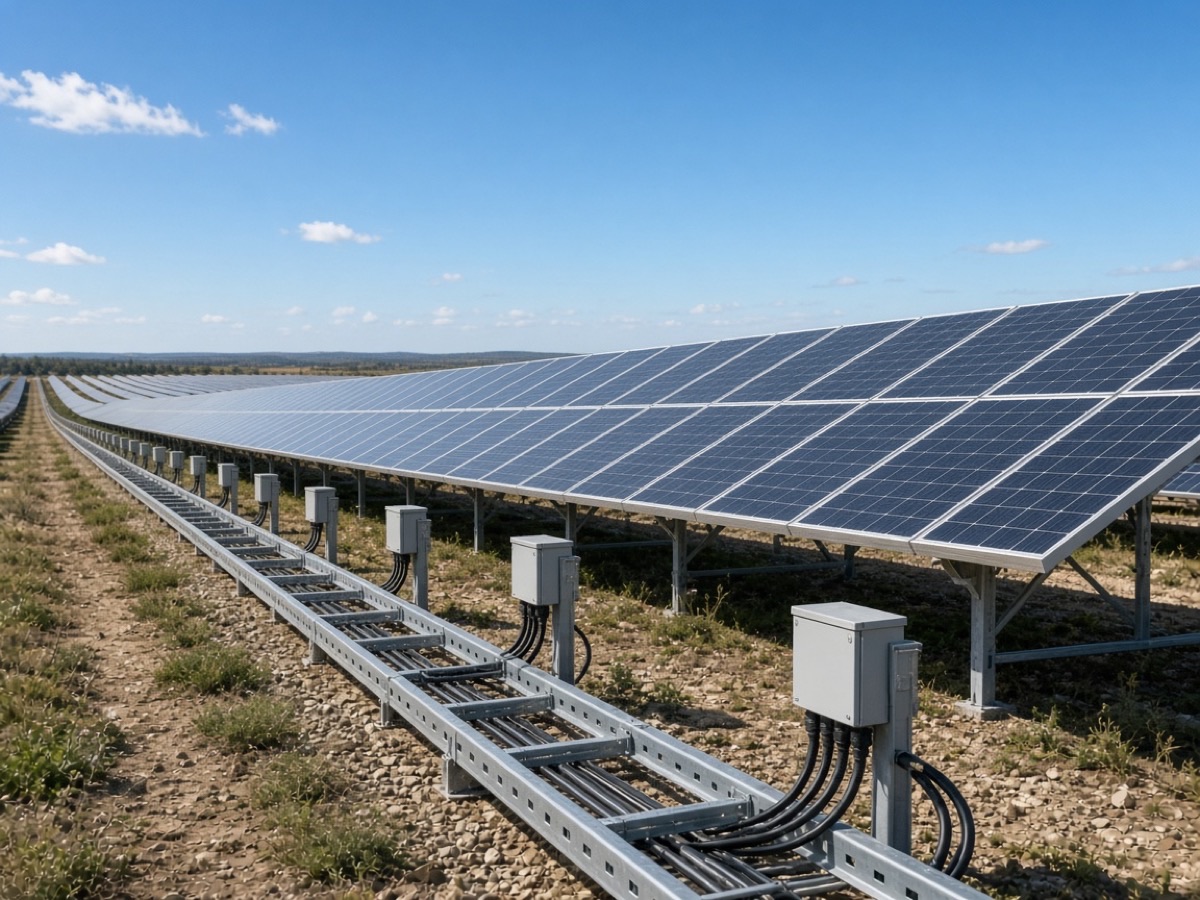

Balance of system (BOS) here means DC collection and related hardware outside the module and (often) outside the inverter power stage: cable, tray or trench, combiners, disconnects, and labor to pull and terminate.
- Often down on large plants: copper cross-section, combiner count, trench length, terminal labor when fewer, longer strings carry the same DC power at lower current.
- Often up or flat: unit price of 1500V-rated cable, connectors, and combiners; training; spare-part SKUs if the fleet still runs 1000V elsewhere.
- Little change on small rooftops: string length is roof-limited; labor and racking dominate; a 1500V sticker may not pay back.
Run a paired BoQ: same AC capacity, 1000V vs 1500V string maps, same inverter family if both exist. If copper and combiner lines barely move, keep the voltage class your crew and AHJ already know.
Do not confuse DC BOS with AC interconnection cost. A 1500V DC plant can still hit the same MV transformer or switchgear constraints on the AC side; those limits are a separate study.
Labor learning curves matter on the first 1500V project for a crew used to 1000V terminations and torque specs. Budget a short toolbox talk and a sample termination inspection; that cost is real even when copper tonnage falls. Warranty claims later often trace to connector families mixed across voltage classes, not to the module watt bin.
If the owner already operates a mixed fleet, standardize spare connectors and fuse holders by voltage class in the CMMS so night-shift swaps cannot silently downgrade a home-run.
1500V vs 1000V — Decision Table
| Topic | Typical 1000V practice | Typical 1500V practice |
|---|---|---|
| Modules per string | Fewer; hits Voc ceiling sooner | More; still limited by cold Voc |
| DC current for same power | Higher | Lower — copper opportunity |
| Best fit | Many rooftops, mixed fleets | Large ground-mount / utility-scale |
| Main RFQ risk | Undersized strings / MPPT packing | Mixed voltage-class components |
| BOS savings proof | Baseline BoQ | Compare full DC collection BoQ |
RFQ Lines Buyers Can Paste
- Design maximum DC system voltage: _____ VDC (state 1000 or 1500 class).
- Site design low temperature for Voc: _____ °C; attach module Voc coefficient.
- Inverter max DC voltage and MPPT window: attach datasheet revision.
- All DC components (cable, connector, combiner, disconnect, fuse) rated ≥ design max VDC.
- String map: modules per string, strings per MPPT, fuse rating.
- Optional: dual BoQ 1000V vs 1500V for copper, combiners, trench, and terminations.
Weltrus supplies PV modules and complementary energy products for project BOMs; when the plant is specified as 1500V, map every DC SKU to that class before PO—marketing voltage without a cold Voc sheet is not a design.
Boundaries: What This Article Is Not
- Not a substitute for a stamped electrical design or utility study.
- Not IEC 61215 / 61730 module paperwork (separate checklist).
- Not AC switchgear vs switchboard selection.
- Not a promise that 1500V always cuts total installed cost.
If the roof chord caps string length and the BoQ shows no copper win, staying on a well-executed 1000V design is often the rational call for schedule and spare-parts simplicity.
Align 1500V Strings With the Real BoQ
Share module datasheet, inverter DC limits, and site low temperature. Weltrus can help you keep string maps and DC BOS language in one voltage class—or confirm when 1000V is enough.
Frequently Asked Questions
What does 1500V PV string design mean?
It means DC strings and collection equipment are designed so maximum system voltage—usually cold open-circuit voltage times modules in series—stays within a 1500 VDC class limit shared by modules, cables, combiners, disconnects, and inverter DC inputs. The number on the brochure is a system voltage class, not a free pass to ignore cold Voc.
Where does 1500V usually save BOS cost versus 1000V?
Longer strings and higher DC voltage often cut DC cable copper, combiner count, and trench or tray runs on large ground-mount or utility-scale layouts. Savings shrink on small rooftops where string length is already short and labor dominates. Always compare a full BoQ, not cable alone.
What must stay rated for 1500 VDC?
Modules, connectors, string and home-run cables, combiners or DC panels, disconnects, fuses or breakers as used, and inverter DC inputs. Mixing a 1500V inverter with 1000V cable or connectors is a common RFQ failure.
Does 1500V change MPPT string sizing rules?
The physics is the same: cold Voc under inverter max DC voltage; hot Vmp in the MPPT window; current under fuse and input limits. 1500V mainly allows more modules per string before you hit the voltage ceiling—confirm the exact inverter datasheet.
When should a C&I rooftop stay at 1000V?
When available roof chord limits string length, when local listing stock is 1000V, when AHJ or utility practice is still 1000V-centric, or when the BoQ shows no meaningful copper or combiner reduction. Do not force 1500V for marketing parity.
