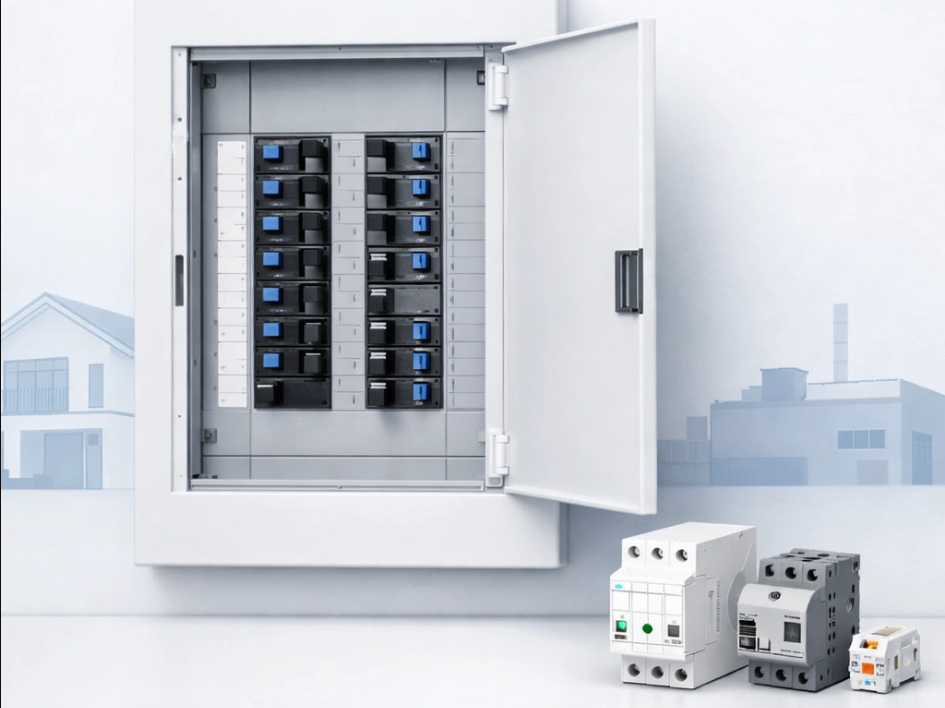

US Standard Load Center Selection Guide: Understanding Certifications & Enclosure Ratings
Introduction

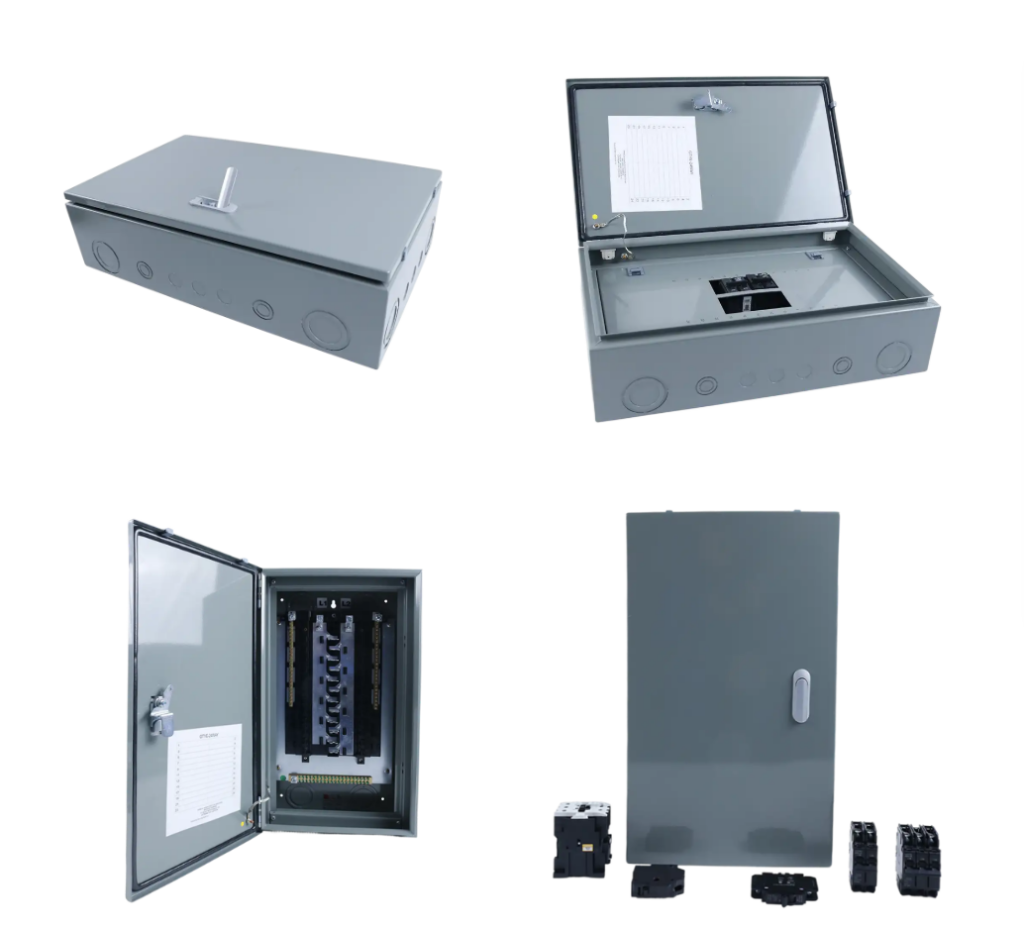

Selecting the right load center (panelboard or breaker box) for residential or commercial electrical systems is a critical decision that impacts safety, code compliance, and long‑term reliability. Beyond basic electrical specifications, understanding certification requirements and environmental protection ratings is essential to ensure your installation meets both safety standards and operational needs.
This guide will help you navigate the key factors for choosing a US‑standard load center, including NRTL certifications, UL 67, NEMA and IP ratings, and other important considerations.
1. Understanding Load Center Certifications
Certification is not just paperwork – it is a verified assurance that a product has passed rigorous safety tests designed to protect installers and end‑users. In the United States, electrical equipment must undergo extensive testing to demonstrate compliance with established performance and safety standards.
UL Certification & NRTLs
While UL certification is not mandatory nationwide, most US inspectors, contractors, and distributors require a UL‑marked electrical enclosure. The Occupational Safety and Health Administration (OSHA) requires certification for electrical products used in certain workplaces.
Nationally Recognized Testing Laboratories (NRTLs) – such as UL, Intertek, TÜV SÜD, and MET Laboratories – test products against standards including ANSI, IEEE, NEMA, CSA, and UL. When evaluating a load center, look for a UL‑Listed mark or another accepted NRTL mark. This indicates the product has been fully tested for safety, performance, and compliance with the National Electrical Code (NEC).
UL 67 – Panelboards & Load Centers
UL 67 covers panelboards that provide control and protection of electrical circuits, as required by the NEC. It sets requirements for construction, performance, and safety features. A major update in January 2017 added a requirement for barriers to prevent accidental contact with live parts, especially when working on service entrance equipment. Always verify that a load center intended for service entrance use includes these protective barriers.
Types of UL Marks
- UL Listed – Tested for all applicable safety requirements for its intended use. This is the mark you should look for on a load center for general purpose applications.
- UL Recognized – Tested only for limited conditions or specific hazards – not suitable as a complete load center mark.
Choose UL Listed load centers for complete safety and compliance.
2. Environmental Protection: NEMA & IP Ratings
Enclosure ratings measure how well a housing protects internal components from dust, moisture, and other environmental factors. Two main systems are used: NEMA (predominant in North America) and IP (international).
Common NEMA Ratings for Load Centers
| Rating | Description | Typical Application |
|---|---|---|
| NEMA 3R | Rainproof, sleet‑resistant | Outdoor residential/commercial |
| NEMA 4 | Water‑tight, hose‑proof | Industrial washdown areas |
| NEMA 4X | NEMA 4 + corrosion resistance | Coastal or chemical environments |
NEMA ratings also cover additional factors like corrosion and gasket aging, making them broader than IP ratings.
Common IP Ratings for Load Centers
| Rating | First Digit (Solid) | Second Digit (Liquid) | Application |
|---|---|---|---|
| IP54 | Limited dust | Splashing water | Indoor, moderate exposure |
| IP65 | Dust‑tight | Low‑pressure water jets | Outdoor / general industrial |
| IP66 | Dust‑tight | Powerful water jets | Heavy rain / washdown |
NEMA vs. IP: How They Compare
- NEMA 3R ≈ IP54 or IP55
- NEMA 4 / 4X ≈ IP66
⚠️ Important: NEMA and IP are not directly interchangeable. NEMA includes tests for corrosion, gasket aging, and other hazards that IP does not cover. Always review the actual environmental requirements of your project rather than relying solely on cross‑reference tables.
3. Key Selection Considerations for Load Centers
Installation Environment
- Indoor, climate‑controlled → NEMA 1 or IP20
- Outdoor, exposed to rain/snow → NEMA 3R or higher
- Coastal / corrosive area → NEMA 4X (stainless steel)
- Washdown / heavy moisture → NEMA 4 or IP66
- Dusty environments → IP6X dust‑tight rating
Electrical Specifications & Capacity
- Determine total amperage (e.g., 100A, 200A, 400A)
- Number of circuits (spaces) needed – allow for future expansion
- Voltage configuration (single‑phase or three‑phase)
Tip: For a typical 1,500+ sq. ft. home, a 200A, 40‑space load center is a common and future‑proof choice.
Compliance & Local Codes
Always check with the Authority Having Jurisdiction (AHJ) – some areas have specific requirements regarding NRTL marks, service entrance barriers, or even particular enclosure ratings beyond the NEC minimum.
Quality & Manufacturer Support
Choose a reputable manufacturer. Look for:
- Sturdy bus bars
- Positive breaker retention
- Durable enclosure materials
- Good availability of technical documents and customer support
4. Making Your Final Decision
Create a simple checklist for your project:
| Requirement | Your Choice |
|---|---|
| Certification | UL Listed (or other NRTL) |
| NEMA rating | NEMA 3R / 4 / 4X (as needed) |
| IP rating (if required) | IP54 / IP65 / IP66 |
| Amperage | ___ A |
| Number of circuits | ___ spaces |
| Phase | Single / Three |
| Special features | Corrosion resistance, barriers, etc. |
✅ Remember: Even the best load center will not perform as expected if installed incorrectly. Always hire a qualified electrician and follow the manufacturer’s instructions and local codes.
