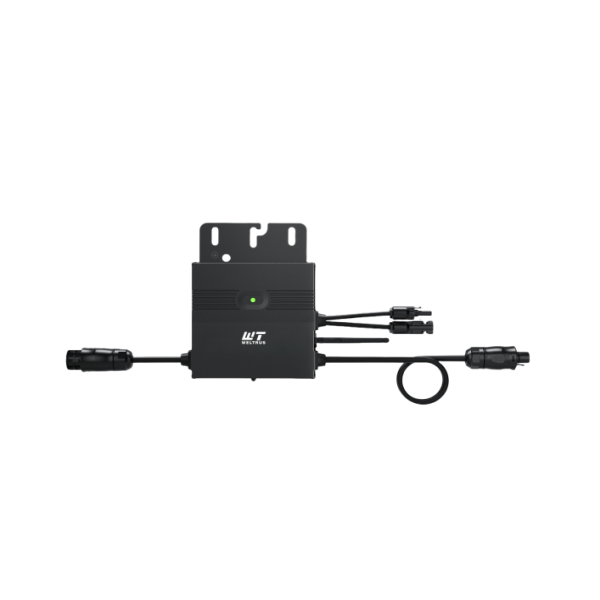

500W MICRO INVERTER
Low DC voltage.
Components selected from world-class brands.
Built-in WiFi or additional monitoring device* available.
Adapts to any system size and optimizes space.
Hand-in-hand design,fewer add-ons, and fastinstallation.
Long 25 years lifetime，optional up to 20 yearswarranty.
Module-level optimization& monitoring.
Product Description
Model：FX-TR500
Input Data (DC)
Recommended Input Power Range(STC)：250W-650W+
Max.DC Input (V)：60V
Isc PV (Absolute Max.)(A)：25A
Operating Range (V）：16V-60V
Max.Input Current(A)：18A
MPPT Voltage Range (V)：22V-50V
Output Data (AC)
Normal Voltage (Vac)：220V/230V
Voltage Range (Vac)：189-260V
Current (Max.continuous) (A)：2.27A
Frequency(Hz)：50Hz/60Hz
Frequency Range (Hz)：47.5-52.5Hz/57.5-62.5Hz
Power(Max.continuous)(W)：400W
Power Factor/Rated (default)：+/-0.90
Total Harmonic Distortion：<3%
Maximur Units Per Branch[12AWG Cable]：10Units
Efficiency
Peak Efficiency：96.5%
MPPT Efficiency：99.9%
Nighttime Power Consumption：<100mW
Communication：PLCC(Power Carrier Communication)/WiFi
Ingress Protection(IP)：IP67
