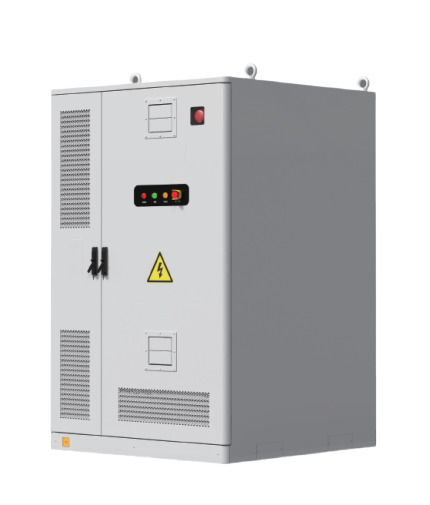

Liquid Cooling All-in-One Cabinet(US/EU Standard)
- It delivers tailored power solutions that help optimize energy usage, reduce carbon emissions, and maximize economic returns.
- Ideal for both off-grid and grid-connected solar-plus-storage applications, it enables the creation of efficient microgrid systems.
- Designed to meet users’ short-term and long-term needs for both AC and DC power distribution.
- Valley filling
- Peak shaving
- Backup Power for Emergencie
- Smart Load Management
- Fast Power Adjustment
- Support for Distributed Power Trading
- Boost Transformer Capacity
- Interconnection Between Transformer Zones

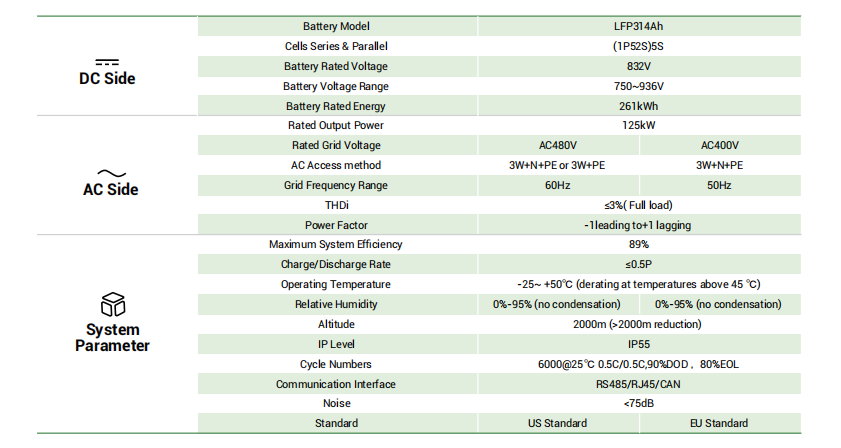

System Parameters
Standards and Certifications:
UL1973:2022, UL9540:2023,UL9540A:2025, NFPA68&69, UL60730,UN38.3, IEC62619:2022, EN62477-1,EN61000-6-2/-4
A uniquely engineered design with integrated plastic fixturing creates a ~1mm gap between battery cells, enabling even and efficient heat dissipation during high-load charge and discharge cycles. This prevents thermal buildup at the cell core, reduces aging, and lowers the risk of swelling, short circuits, or fire — ensuring long-term system stability and safety
Aluminum connecting strips rated at three times the nominal current minimize series losses and heat buildup between cells, enhancing conductivity and thermal stability. Laser welding is seamlessly integrated with automated productionlines. Combined with vision-guided positioning, it ensures high welding accuracy and reduces the risk of detachment or faulty welds.
The advanced BMS features up to 115 real-time sensing protections, offering full-spectrum safety for battery cells against overcharge, over-discharge, overcurrent, and overheating. Its passive balancing function maintains cell consistencyduring full charge/discharge cycles, minimizing degradation and The EMS offers powerful data processing and visualization capabilities for comprehensive monitoring and control of energy storage stations. The system providesreal-time insights into installed capacity, device operating status, available charge/discharge capacity, 24-hour power curves, recent energy statistics, and both cumula-tive and daily consumption data. With built-in real-time alerts,users are instantly notified of any abnormalities, ensuring operational safety and stability. The intuitive interface allows users to clearly understand energy flow, fine-tune operational strategies, and greatly enhance overall efficiency and economic returns.maximizing long-term battery performance.

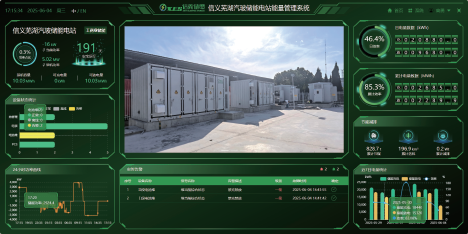

The EMS offers powerful data processing and visualization capabilities for comprehensive monitoring and control of energy storage stations. The system provides real-time insights into installed capacity, device operating status, available charge/discharge capacity, 24-hour power curves, recent energy statistics, and both cumula-tive and daily consumption data. With built-in real-time alerts, users are instantly notified of any abn ormalities, ensuring operational safety and stability. The intuitive interface allows users to clearly understand energy flow, fine-tune operational strategies, and greatly enhance overall efficiency and economic returns.
