Inside Weltrus Solar Panel Manufacturing: What Buyers See on the Line
Key Takeaway
A solar panel manufacturing factory walkthrough is a buyer checklist you can photograph: cell handling, stringing, in-process inspection, lay-up, lamination, and packing. Photos prove a process exists. They do not replace IEC 61215 / IEC 61730 files, electroluminescence (EL) or flash-test records, or a bill of materials mapped to the shipped serial.
Table of Contents
- Why a Module Datasheet Is Not a Factory
- What a PV Module Line Walkthrough Means
- Station 1: Cell Handling
- Station 2: Stringing
- Station 3: Tabbing and In-Process Inspection
- Station 4: Stringer-Class Equipment
- Station 5: Lay-Up
- Station 6: Lamination
- Station 7: Packing and Dispatch
- RFQ Fields to Capture on the Floor
- Boundaries: What Photos Cannot Prove
- Frequently Asked Questions
Why a Module Datasheet Is Not a Factory
Overseas EPC teams and distributors often shortlist PV module OEMs from a watt-class PDF, a cell-technology slide, and a landed price. Then the first container arrives with a different backsheet, a frame finish that does not match the drawing, or electroluminescence (EL) images that the supplier cannot map to serials. Those gaps were often visible on the factory floor months earlier—if anyone walked it with a checklist.
A factory visit is not a courtesy tour. It is the last cheap moment to confirm that cells, strings, laminates, and packed modules belong to one production system. The photos in this article come from a Weltrus solar panel manufacturing hall: automated cell handling, hanging cell strings, in-process tooling, an enclosed stringer-class machine, gantry lay-up, a laminator with an operator platform, and palletized finished modules in a marked packing zone.
Use this walkthrough with cell-technology context—see the solar cell technologies guide. After the tour, lock type tests in writing with an IEC 61215 and IEC 61730 module verification checklist.
What a PV Module Line Walkthrough Means
A PV module factory walkthrough is a structured walk of the stations that turn crystalline cells into a sealed laminate and a packed shipment. It is not a marketing video and not a warehouse photo of boxed goods. On this Weltrus line, seven stations are visible and should be photographed with work-order IDs or serials when the OEM allows:
- Cell handling and transfer
- Stringing (interconnected cell strings)
- Tabbing and in-process inspection
- Stringer-class production equipment
- Lay-up of glass, encapsulant, and backsheet or rear glass
- Lamination
- Finished-module packing
This is a module line, not an energy-storage cabinet line. If your RFQ is for C&I BESS, use a cabinet walkthrough instead. If your RFQ is for modules, stay on cells, strings, laminates, and packing. Cell architecture (PERC, TOPCon, bifacial) belongs in procurement documents, not in a guess from a blue anti-reflective coating in a photo—see TOPCon vs PERC bifacial procurement when you write the spec.
Station 1: Cell Handling

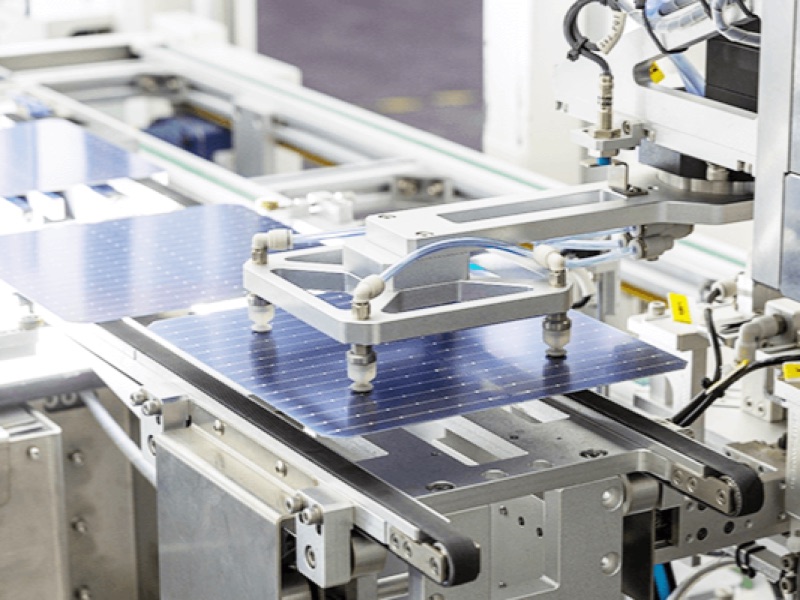

Start at the cell, not the finished pallet. Crystalline cells are thin, brittle, and orientation-sensitive. On this line, a vacuum gripper with multiple suction cups lifts cells from a conveyor and places them for the next process. Blue anti-reflective coating and gridlines are visible. The station proves that cell transfer is automated and that the line is running live cells, not empty fixtures for a photo call.
| What you see | What to write in the RFQ | Failure if you skip it |
|---|---|---|
| Vacuum gripper and conveyor | Cell format (size class), handling method, breakage policy | Hidden yield loss billed as “normal scrap” |
| Gridline orientation | Busbar / interconnection family matching the BOM | Stringer recipe that does not match purchased cells |
| Live cells on the belt | Whether the visit SKU matches the PO cell vendor | A show line using a different cell lot |
Ask which cell vendor and which incoming inspection (appearance, electrical sample) apply to the SKU you are buying. A gripper photo is process evidence. It is not a cell certificate.
Station 2: Stringing

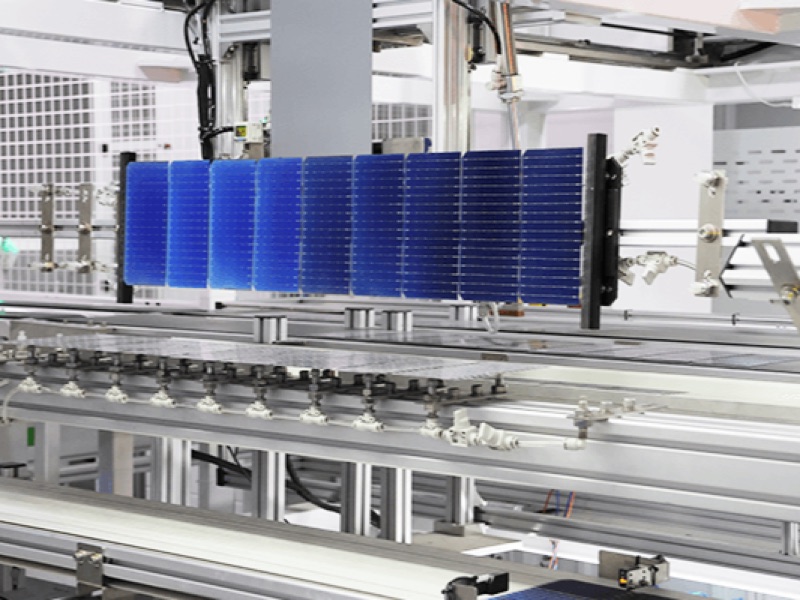

Stringing interconnects cells into a string before they are laid onto glass. In this hall, a completed crystalline string hangs on a transfer fixture above the conveyor—cells aligned, ribbons facing the next station. Count cells in the string only as a process clue, not as a nameplate wattage. String length belongs in the drawing for that SKU.
Buyers should ask three questions at this station:
- Interconnect — ribbon, wire, or other family; solder vs conductive adhesive if used
- Alignment — how busbar offset and cell gap are controlled
- Fail path — what happens to a string that fails visual or EL before lay-up
A hanging string proves the plant can interconnect cells. It does not prove the interconnection matches the IEC type-test BOM. Write the interconnect family into the purchase order so the floor unit and the certificate pack cannot drift.
Station 3: Tabbing and In-Process Inspection

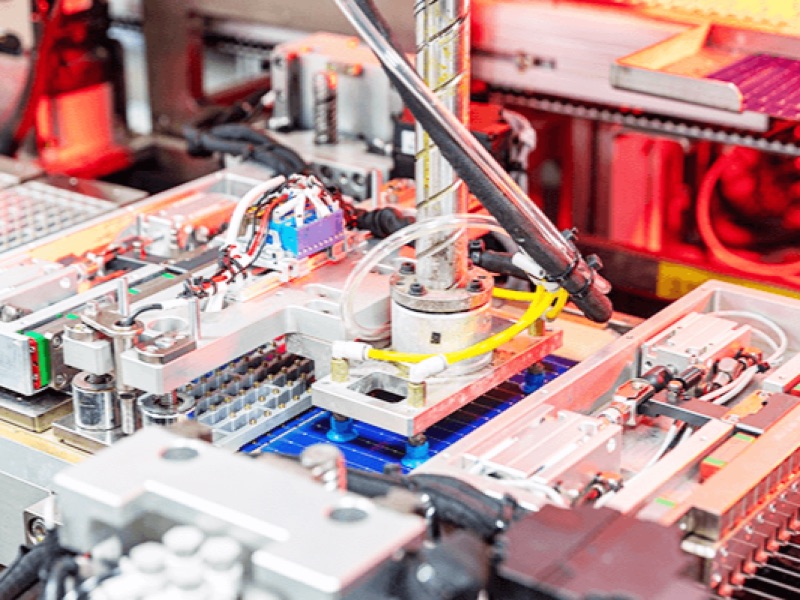

Close tooling over a cell, pneumatic lines, and red process lighting mark a station where soldering, tabbing, or in-line inspection happens. Treat the photo as evidence of a controlled workcell, not as a named test report. Red lighting is common on vision or soldering workcells; it is not by itself an EL tunnel.
On the visit, separate three claims the OEM may mix:
- Process exists — tooling, fixturing, lighting, and an operator or robot path
- Inspection exists — vision, EL, or both; where in the sequence; sample vs 100%
- Data exists — whether images or I-V curves follow the serial after shipment
If the OEM will not show an EL or flash-test screen, still require a redacted sample log in the bid. Process secrecy is not a reason to omit pass/fail rules.
Station 4: Stringer-Class Equipment

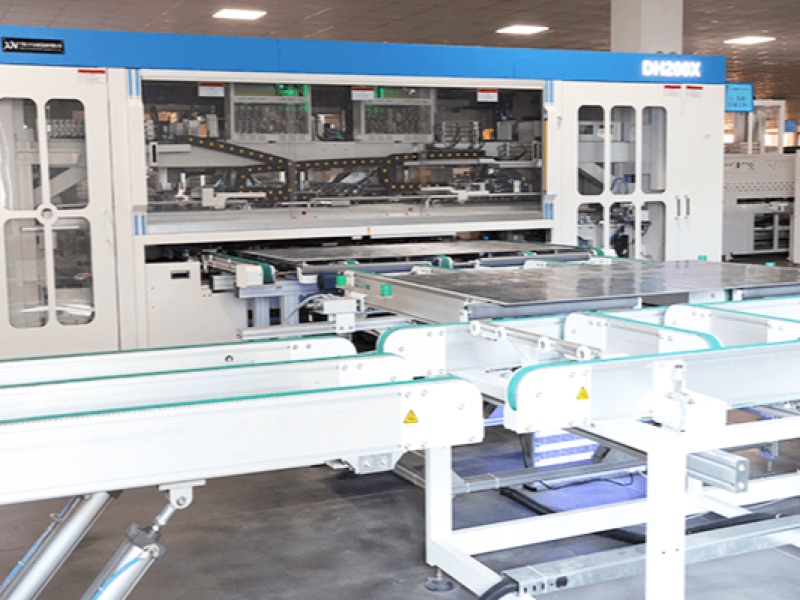

The enclosed machine on this floor feeds inbound and outbound conveyors and carries a housing label (DH2400K class). That is stringer- or tabber-stringer-class equipment: cells in, strings or laid circuits out. Look at guarding, conveyor height, and whether the machine is actually cycling—not only painted for the tour.
Equipment brand and model on a housing are useful for spare-parts and process capability talk. They are not a Weltrus product SKU. Ask which recipes (cell size, interconnect) this machine is qualified for, and whether your PO uses a qualified recipe. A large enclosure proves capex. It does not prove the recipe for your watt class.
Station 5: Lay-Up

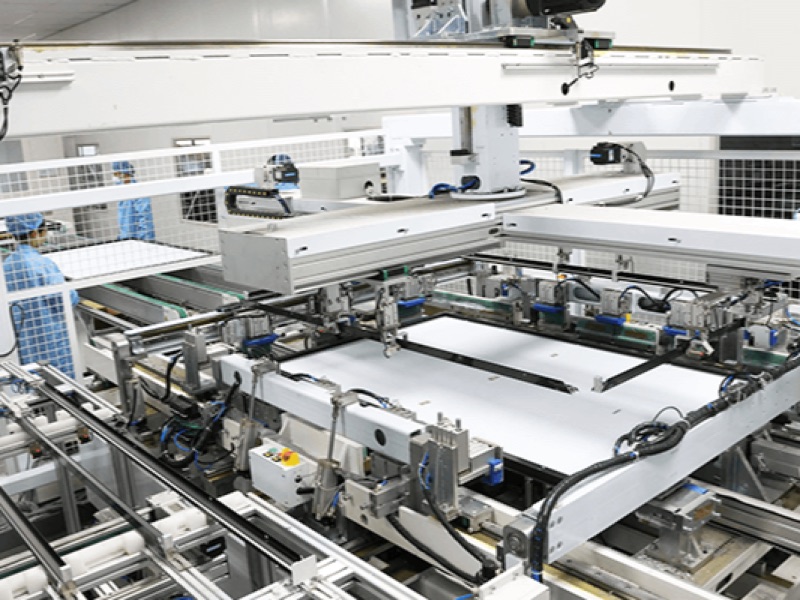

Lay-up stacks the laminate: typically glass, encapsulant, cell strings, encapsulant, and backsheet or rear glass. In this hall a gantry sits over a white sheet on the conveyor—backsheet or glass in process—with fixtures, utilities, and an operator in a clean gown behind guarding. Gowning is a cleanliness signal. It is not a cleanroom class rating unless the OEM states one in writing.
Capture three physical items before you leave this station:
- Stack order — glass-glass vs glass-backsheet; which face is up on the belt
- Encapsulant family — EVA, POE, or other; named in the BOM, not inferred from color
- Handling — gantry, manual assist, or both; edge protection before lamination
If the brochure shows a bifacial glass-glass module and the belt shows an opaque backsheet, stop and reconcile the SKU before PO. Photos of lay-up are the cheapest way to catch that mismatch.
Station 6: Lamination

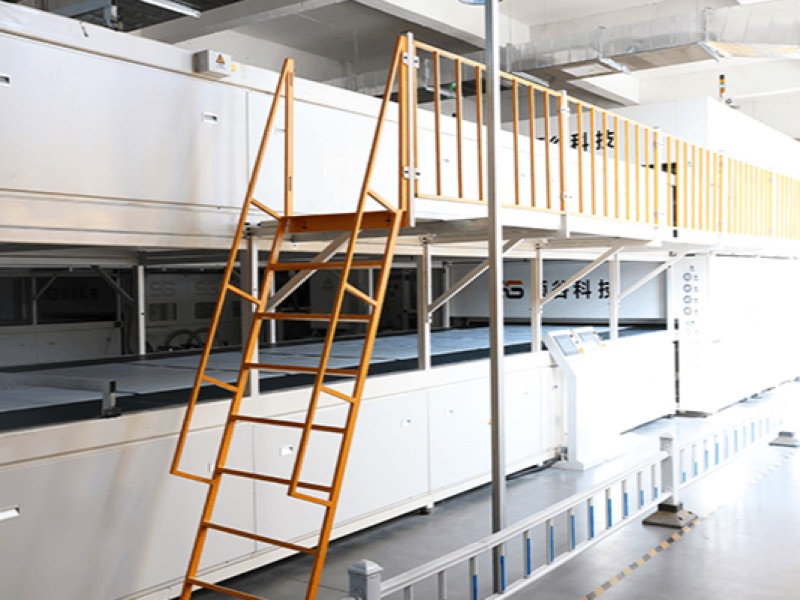

Lamination is the heat-and-vacuum step that turns the stack into a sealed sandwich. This line shows a long laminator body, an operator platform with stairs, and a floor-level control panel. That layout is typical of a production laminator, not a lab press. Ask which temperature, vacuum, and cycle family apply to your encapsulant—not for a public number in a brochure, but for a process sheet tied to the SKU.
A laminator with stairs proves the plant can encapsulate. It does not prove gel content, adhesion, or that the cycle matches the IEC type-test build. Pair this station with the verification checklist linked above: type-test evidence must name the same materials you see on the belt.
Station 7: Packing and Dispatch

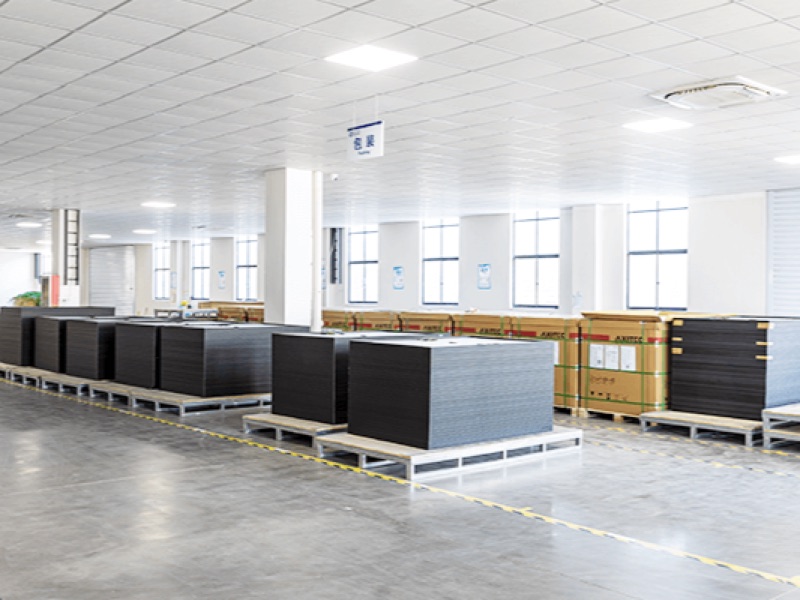

Finished modules on this floor sit in stacks on pallets in a marked packing zone, with cartons staged beside the stacks. That is handling and logistics evidence: edge protection, pallet pattern, and whether packing is a dedicated area rather than an overflow aisle. Photograph labels, corner protectors, and how many modules sit per pallet—then require the same packing drawing in the PO.
Packing photos do not prove flash-test bins, EL coverage, or nameplate wattage. Ask:
- Whether every packed module has a flash-test record mapped to serial
- How polarity, connectors, and junction-box orientation are checked before the stack
- Which packing instruction applies to the destination market (container vs pallet count)
A tidy packing hall proves the plant can ship. It does not prove the packed SKU is the certified SKU.
RFQ Fields to Capture on the Floor
Leave with a one-page capture, not only a photo album.
| Station | Minimum capture | Attach to PO |
|---|---|---|
| Cell handling | Cell format, gripper type, incoming inspection note | Cell vendor and incoming IQC for the SKU |
| Stringing | String photo, interconnect family, fail path | String drawing and interconnect spec |
| Tabbing / inspection | Whether EL and flash are 100% or sample | Quality plan and sample log format |
| Stringer equipment | Machine class in use, recipe vs PO cell size | Qualified recipe list for the SKU |
| Lay-up | Glass-glass vs backsheet, stack order photo | BOM line for glass, encapsulant, backsheet |
| Lamination | Process sheet reference, not a public cycle time | Type-test BOM vs floor materials |
| Packing | Pallet pattern, labels, corner protection | Packing drawing and serial-to-flash map |
If photography is restricted at a station, still require a dated process photo pack in the bid for that SKU. A verbal “we have a laminator” is not equivalent.
Boundaries: What Photos Cannot Prove
Do not treat this factory photo set as proof of:
- Nameplate wattage, bin, or annual factory capacity
- Cell technology (PERC vs TOPCon vs other) without a BOM and cell certificate
- IEC 61215, IEC 61730, or other certificates for the exact shipped BOM
- 100% EL or flash-test coverage
- Frame alloy or GRPU frame changeover unless that station is on the same visit
- Lead time for a different SKU than the units on the belt that day
Weltrus can host a line walk and share process and packing evidence for the module SKU you are buying. The walkthrough is station one. Shipment still waits on type-test files, a quality plan, and serial-mapped test records.
Request a Module-Line Walkthrough
Share target module type, destination market, and whether you need a factory visit or a document pack first. Weltrus can align a station checklist with IEC verification files and packing evidence—before you authorize production.
Frequently Asked Questions
What should buyers photograph on a PV module factory visit?
Photograph seven stations when the OEM allows: cell handling, hanging or transferred cell strings, tabbing or in-process inspection, the stringer-class machine and its conveyors, lay-up with gantry and gowning, the laminator and control panel, and palletized finished modules in the packing zone. Capture work-order IDs or serials where they are visible.
Does a factory photo replace IEC 61215 or IEC 61730 reports?
No. Line photos show that process equipment exists. IEC 61215 and IEC 61730 files must still name the module type, BOM revision, and lab that tested it. A busy laminator is not a certificate.
What is the difference between stringing and lamination in module manufacturing?
Stringing interconnects crystalline cells into strings with ribbons or wires. Lamination encapsulates the laid-up stack—typically glass, encapsulant, cells, encapsulant, and backsheet or rear glass—under heat and vacuum so the laminate is a sealed sandwich. They are sequential stations, not synonyms.
Can packing photos prove EL or flash-test coverage?
No. Palletized finished modules prove packing capacity and handling method. EL and flash-test (I-V) coverage belong in a written quality plan: 100% vs sample, fail path, and whether the log follows the serial after shipment.
How does a PV module factory walkthrough differ from an ESS cabinet walkthrough?
A module line is cell handling, stringing, lay-up, lamination, and packing. A C&I ESS cabinet line is modules, aging or charge test, finished cabinets, and UN 3480 packing. Do not reuse an energy-storage visit checklist on a PV line, or the reverse.
