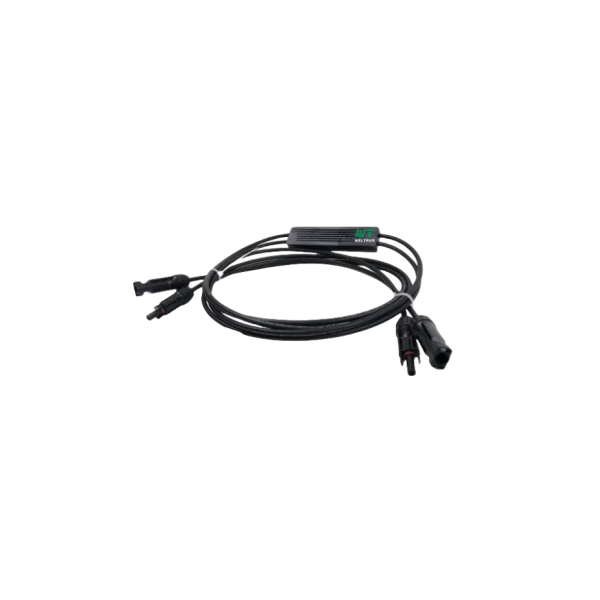

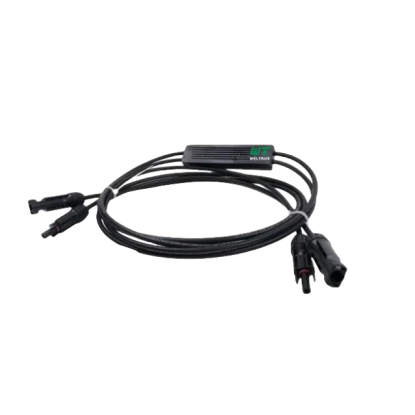

PV-FX2T PV Shutdown
Modeofcommunication：PLC
Maximum input current：20A
Maximuminputvoltage：80V
Maximumpower：750W
Maximumsystemvoltage：1500V(Optional)
Product Description
Technical Specifications
| Model | FX-HCPS1 |
| Communication Method | PLC |
| Maximum Input Current | 20A |
| Maximum Input Voltage | 80V |
| Maximum Power | 750W |
| System Maximum Voltage | 1500V (optional) |
| Rated Power | 600W |
| Rated Current | 16A |
| Start Voltage | 12V |
| Protection Level | IP68 |
| Operating Temperature | -40°C to 65°C |
| Connector | MC4 or compatible with MC4 |
| Dimensions (LxWxH) | 143mm*35.5mm*17.5mm |
| Weight (grams) | 504g |
| Compliance Standard | NEC 2017/2020 690.12 |
