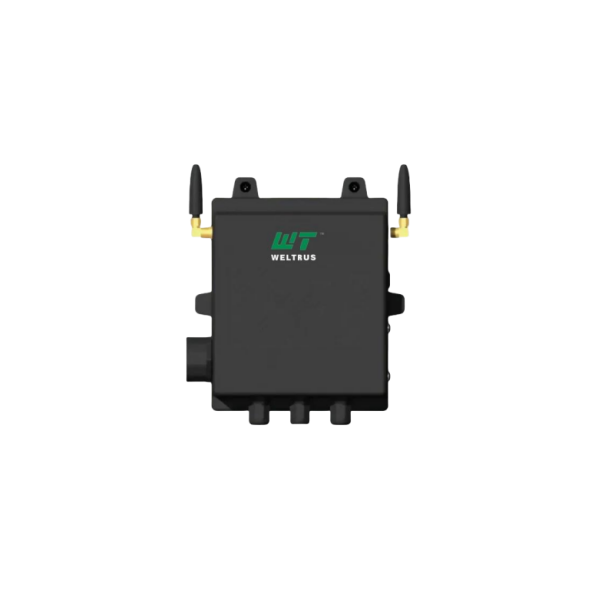

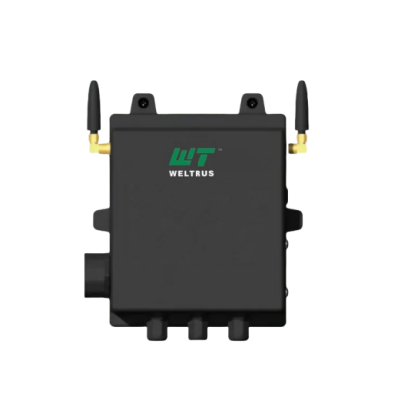

PV-FX-M SMART GATEWAY
Communication
Communication protocol Zigbee
Wireless distance
Maximum number of connected ：30
Communicate with the quick break button ：
IO Control mode
Extended communication interface：
RS485 COMX1 9600bps ModBus-RTU
Product Description
| Communication | Communication Protocol | Zigbee |
| Wireless Range | 100m outdoor 30m indoor |
|
| Maximum Connections | 30 | |
| Use Quick Interrupt Button for Communication | Control Method | IO |
| Cloud Communication | Wired Internet | RJ 45×1 100Mbps |
| Wireless Internet | Wireless Network 802.11b/g/n 2.4G | |
| Antenna Quantity | 2 | |
| Sampling Interval | 1 minute | |
| Extended Communication Interface | RS485 | COMx1 |
| 9600bps | ||
| Bus RTU | ||
| Reset Button | Self-reset Button *1 | |
| Interaction | Indicator Light | LED Indicator Light *2 |
| Application | Monitoring APP | |
| General Parameters | Operating Temperature | -20°C to 55°C |
| Dimensions | 181mm*163mm*51mm (L*W*H) | |
| Weight | ≤200g | |
| Installation Method | Wall-mounted | |
| Protection Level | IP65 | |
| Power Supply | Direct Current 12V Power Supply | |
| Certificates | Certificates |
