IP66 Outdoor Hybrid Inverter Installation Checklist
Key Takeaway
An IP66 outdoor hybrid inverter still needs a site checklist: mounting height, clearances, sun and flood risk, intact cable glands, and ambient limits. The rating protects the enclosure—it does not forgive bad location or open unused ports.
Table of Contents
The “IP66, Mount It Anywhere” RFQ
Distributors often write “outdoor hybrid, IP66” and stop there. The unit arrives. It goes on a west wall in full afternoon sun, inches above a splash zone, with a field-drilled hole for a cable the gland plate did not include. Within a season: derating alarms, moisture at unused ports, or a warranty dispute over “outdoor use.”
The miss is reading IP66 as a complete outdoor design. Ingress protection is one line on the nameplate. Mounting, thermal environment, cable entry, and flood height are separate lines in the installation manual. This checklist is for installers and purchasers freezing an outdoor hybrid inverter location—not for fault-code troubleshooting (that belongs in the inverter maintenance pillar) and not for parallel wiring (parallel limits and wiring).
Weltrus outdoor-capable hybrids are selected when the datasheet states the IP rating and outdoor mounting rules. Confirm the exact SKU before you assume every hybrid in the catalog is wall-ready for rain. If the quote lists IP66 but the carton and nameplate say indoor only, stop the install and reissue the BOM—do not “upgrade” the site with tape and hope.
What IP66 Does and Does Not Cover
IP66 (when stated for the product) indicates a dust-tight enclosure and protection against powerful water jets from any direction—under test conditions with covers and glands correctly fitted. It is not a submarine rating, not a flood rating, and not a promise of full power at any ambient.
| Covered when installed correctly | Not covered by the IP digits alone |
|---|---|
| Dust and driving rain / hose jets on intact enclosure | Standing water, immersion, or flood above the unit |
| Normal outdoor splash with listed glands | Extra holes, missing blanks, loose covers |
| Outdoor wall mount within maker clearances | Over-temperature derating in full sun or hot alleys |
| Corrosion resistance as specified for the finish | Coastal salt without the stated corrosion class / care |
Always pair IP with ambient operating range, altitude, and mounting orientation from the same datasheet. Indoor hybrids left outdoors “because it did not rain today” are outside the product scope.
Outdoor Installation Checklist
1. Product and site fit
- Nameplate / datasheet shows outdoor use and IP66 (or the rating you quoted).
- Ambient min/max at the wall matches the operating range, including sun-loaded afternoon peaks.
- Battery topology fits: outdoor hybrid with indoor LV pack, or a listed outdoor energy stack—do not invent cable runs past voltage-drop and code limits (48V matching still applies).
- Service type (1P / 3P) and AC class already frozen (6kW vs 8kW, phase class).
2. Mounting location
- Structure can take the weight and vibration; use specified anchors.
- Height above expected splash, snow drift, and local flood guidance.
- Not under uncontrolled roof runoff or gutter outlets.

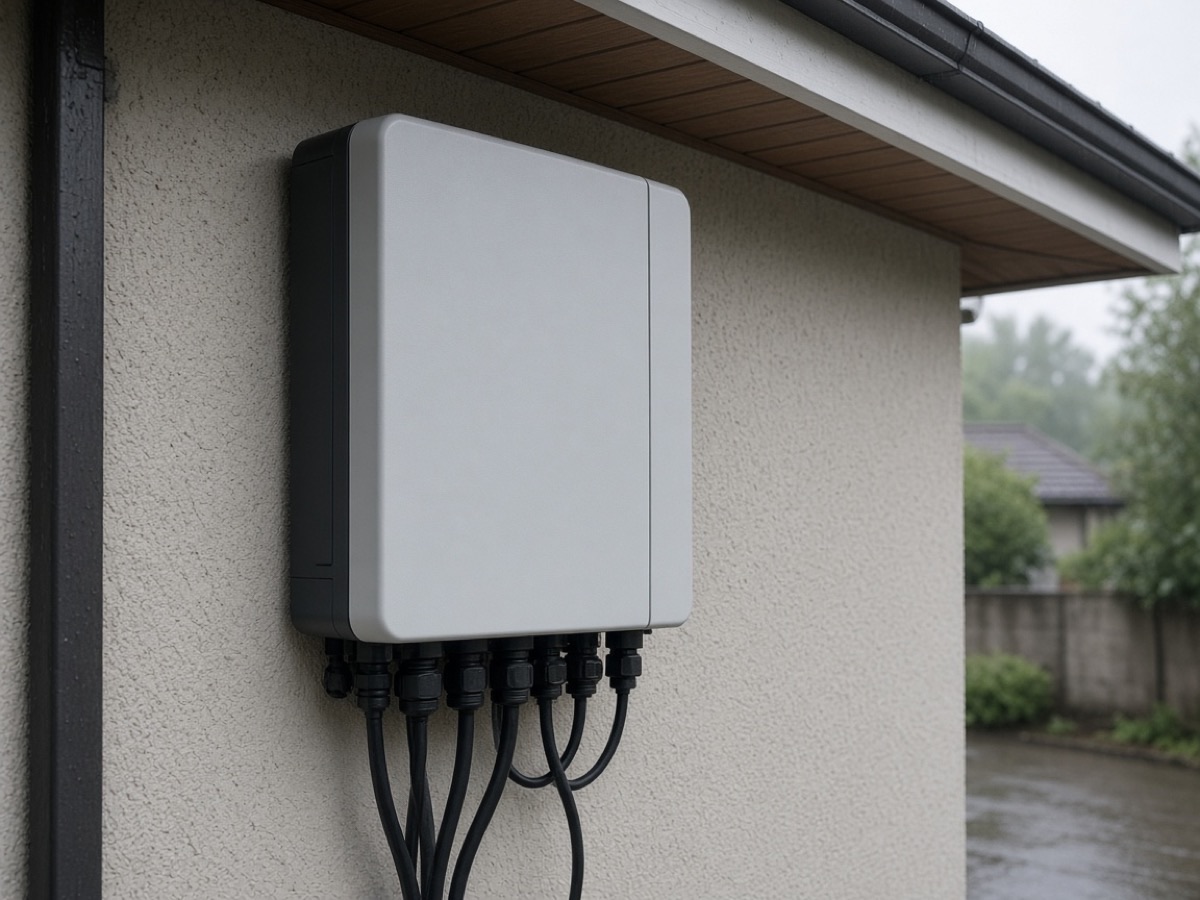

- Shade or shallow eave preferred when the manual warns about solar gain; never seal the unit in an unventilated box.
- Clearances on top, sides, and front for airflow and service—measure, do not eyeball.
- Access for isolation devices and emergency shutdown remains reachable.
3. Cable entry and sealing
- Use only listed glands and diameters; torque to the guide.
- Blank every unused opening with approved plugs.
- No field-drilled holes in the enclosure.
- Drip loops where the guide requires; outdoor cable jackets rated for UV.
- Earthing / bonding continuous and labeled.
4. Electrical and controls
- AC and DC isolation within reach and correctly rated.
- CT / export sensor placement for the real utility point.
- Grid code and country setting match the interconnection approval.
- If parallel units are outdoors, comms cable and weatherproofing follow the parallel kit (parallel wiring checks).
5. Commissioning and handover
- Cover closed, latches secure, no packing foam left on heat sinks.
- Insulation and polarity checks before energizing.
- Photo set: wide site, glands, clearances, nameplate IP line.
- Owner note: keep vents clear; do not pressure-wash into open service positions.
Common Outdoor Failures
- Full-sun west wall — unit derates daily; owner thinks the hybrid is undersized.
- Open unused gland — IP rating voided; condensation and insects inside.
- Low mounting in a courtyard — splash and debris; corrosion at the base.
- DIY shade box with no airflow — hotter than open outdoor mount.
- Indoor-only SKU outdoors — paperwork said IP66; the carton said indoor.
RFQ and Handover Fields
- Outdoor hybrid model and stated IP rating.
- Wall photo with height marks and sun orientation.
- Ambient extremes for the site (summer peak in sun if exposed).
- Battery location (indoor / outdoor / distance).
- Cable entry plan (gland sizes, no extra holes).
- Flood / splash note for the property.
- Export limit and CT plan.
- Who signs the outdoor mounting checklist at COD.
A useful first package is: wall photo, preferred height, shade yes/no, and battery room distance. Weltrus can then confirm an outdoor-capable hybrid class—or require an indoor plant room instead of forcing IP66 into a bad microclimate.
Boundaries: What This Article Is Not
- Not inverter fault-code or repair troubleshooting.
- Not a coastal corrosion lab report—ask for the stated corrosion / coating class separately.
- Not battery outdoor cabinet design for C&I BESS.
- Not permission to ignore local electrical and building codes.
If the site cannot meet clearance, flood height, and ambient limits, redesign the location. Do not “trust IP66” as a substitute for site engineering.
Confirm Outdoor Hybrid Mounting
Share a wall photo, mounting height, sun exposure, battery distance, and target IP rating. Weltrus will map an outdoor-capable hybrid class and flag checklist items still blocking COD.
Frequently Asked Questions
Does IP66 mean a hybrid inverter can be installed outdoors without any shelter?
IP66 means strong dust and water-jet protection for the enclosure when glands and covers are correctly fitted. It does not remove derating in high sun, flood-height rules, or maker clearance and ambient limits. Follow the installation manual for shade, mounting height, and cable entry.
What should I check before mounting an outdoor hybrid inverter?
Confirm the SKU is outdoor-rated IP66 (or as stated), wall or structure load, clearances, sun and rain exposure, flood and splash risk, cable route with proper glands, and that battery location matches the product topology (indoor pack vs outdoor-ready).
Can I drill extra holes in an IP66 hybrid enclosure?
No. Extra holes break the ingress rating. Use only listed cable glands and openings. Seal unused ports with approved blanks from the maker kit.
Where should outdoor hybrids not be mounted?
Avoid flood-prone low walls, direct roof runoff paths, enclosed hot boxes with no airflow, and locations that violate fire or utility clearance. Do not mount where ambient exceeds the datasheet even if the enclosure is IP66.
What commissioning photos help an outdoor IP66 install RFQ or warranty file?
Wide shot of mounting height and surroundings, detail photos of glands and unused port blanks, clearance to walls and vents, CT and AC isolation labeling, and the nameplate IP rating. Note ambient and sun orientation.
