Comprehensive Guide to Solar Cell Technologies: From Monocrystalline to BC, Understanding All Key Differences

📅 March 5, 2026 ⏱️ 15 min read 📁 Solar Technologies

Table of Contents

• Introduction
• Part 1: Understanding Basic Concepts – Materials, Technologies, and Functions
• Part 2: Group One – Base Materials: Monocrystalline vs. Polycrystalline
• Part 3: Group Two – Advanced Technologies: PERC, TOPCon, HJT
• Part 4: Bifacial Function – The “Secret Weapon” for Additional Generation
• Part 5: BC Technology – The “Ultimate Form” of Single-Junction Silicon Cells
• Part 6: Quick Comparison Table of All Technologies
• Part 7: Summary and Selection Recommendations

Introduction

As the global energy transition accelerates, photovoltaic technology is evolving rapidly. For users planning to install solar systems, terms like monocrystalline, polycrystalline, PERC, TOPCon, HJT, and BC can be confusing.

What exactly is the relationship between these concepts? Which technology is right for you? This article will clarify everything.

Part 1: Understanding Basic Concepts – Materials, Technologies, and Functions

First, it’s important to understand that these terms are not all on the same level:

Analogy: If we compare solar cells to automobiles——

• Monocrystalline/polycrystalline determines the basic platform (like “gasoline car” vs. “electric vehicle”)
• PERC and similar technologies are equivalent to engine technology, determining power performance
• Bifacial function is like a four-wheel drive system, providing advantages in specific environments

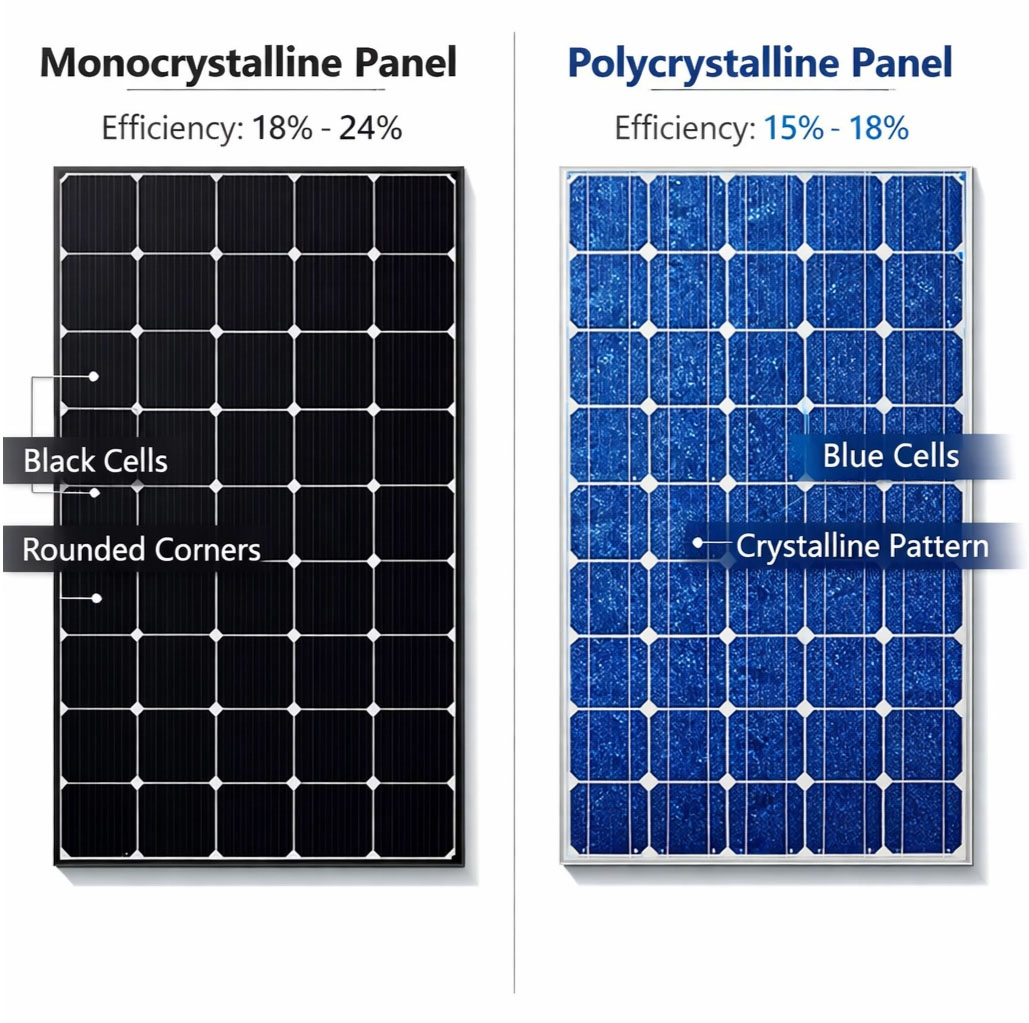

Part 2: Group One – Base Materials: Monocrystalline vs. Polycrystalline

This is the most fundamental classification of solar panels, determining the product’s foundation.

Feature	Monocrystalline	Polycrystalline
Manufacturing	Pulled from single crystal, complex process	Cast from multiple crystals, simpler process
Appearance	Deep black or blue, rounded corners	Mottled blue, frost-like pattern, square cells
Efficiency	High: 18%-24%	Lower: 15%-18%
Cost	Higher (about 15-25% more)	Lower, good value
Low-light Performance	Better in cloudy conditions, mornings/evenings	Relatively weaker

Selection Advice:

Monocrystalline: Best for limited roof space, sufficient budget, and when aesthetics and long-term generation are priorities

Polycrystalline: Cost-effective choice for spacious installation areas with budget sensitivity

Note: Polycrystalline market share has significantly declined; the mainstream market has fully shifted to monocrystalline.

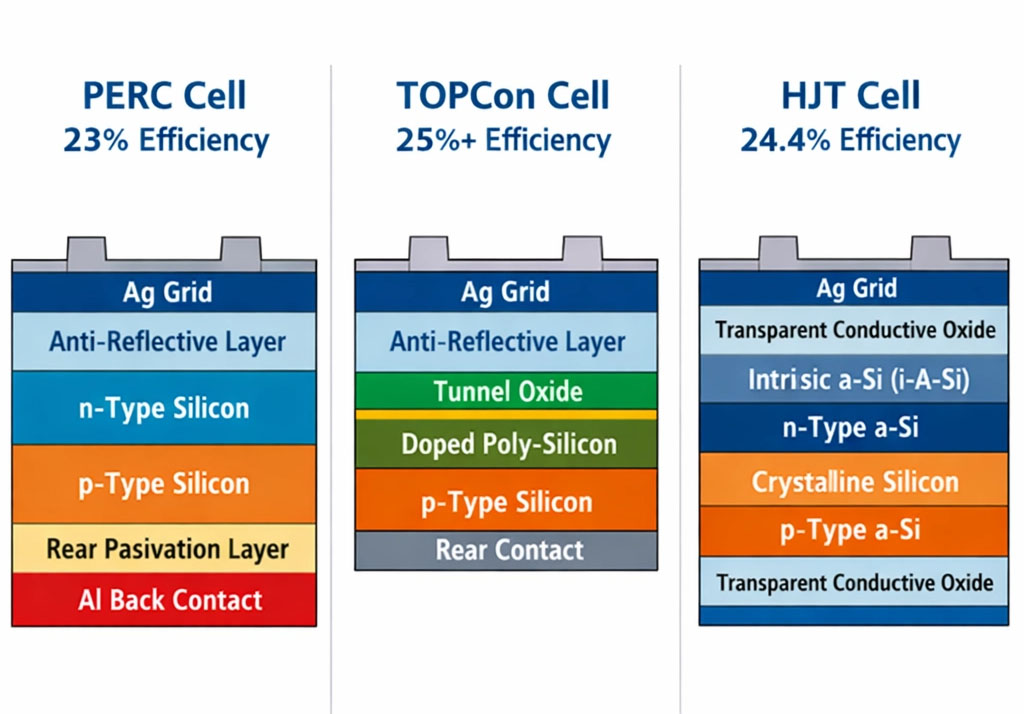

Part 3: Group Two – Advanced Technologies: PERC, TOPCon, HJT

These are the core directions for improving efficiency in modern photovoltaic technology.

PERC (Passivated Emitter and Rear Cell)

PERC can be understood as an “upgraded version” of traditional monocrystalline cells. It adds a passivation layer on the rear, like adding insulation to a wall, reducing light loss and electron recombination.

• Mass production efficiency: Approximately 23%
• Theoretical limit: 24.5%
• Current status: Mainstream technology in recent years, good value, but approaching efficiency limits
• Key advantages: Mature technology, good cost control, complete industry chain

TOPCon (Tunnel Oxide Passivated Contact)

TOPCon is seen as the “successor” to PERC technology. It creates an ultra-thin silicon oxide layer and doped polysilicon layer on the rear, achieving perfect passivation and opening a “highway” for electrons.

• Mass production efficiency: 25%+
• Theoretical limit: 28.7%
• Current status: Frontrunner in next-generation technology, already in mass production
• Key advantages: High efficiency, low degradation, good low-light response, compatible with PERC production lines
• Generation gain: 3-5% improvement compared to PERC

HJT (Heterojunction)

HJT is a “disruptive” architecture technology, forming a heterojunction between crystalline silicon and amorphous silicon thin films.

• Mass production efficiency: 24.4%+
• Current status: Promising technology, currently cost-constrained, developing in specific markets

Key advantages:

• Extremely simple process (only 4 steps, far fewer than TOPCon’s 11-13 steps)
• Low production temperature (<230°C), low energy consumption
• Very high bifaciality (can exceed 95%)
• Excellent temperature coefficient (less affected by high temperatures)
• Ultra-low carbon footprint, meeting environmental requirements in markets like Europe

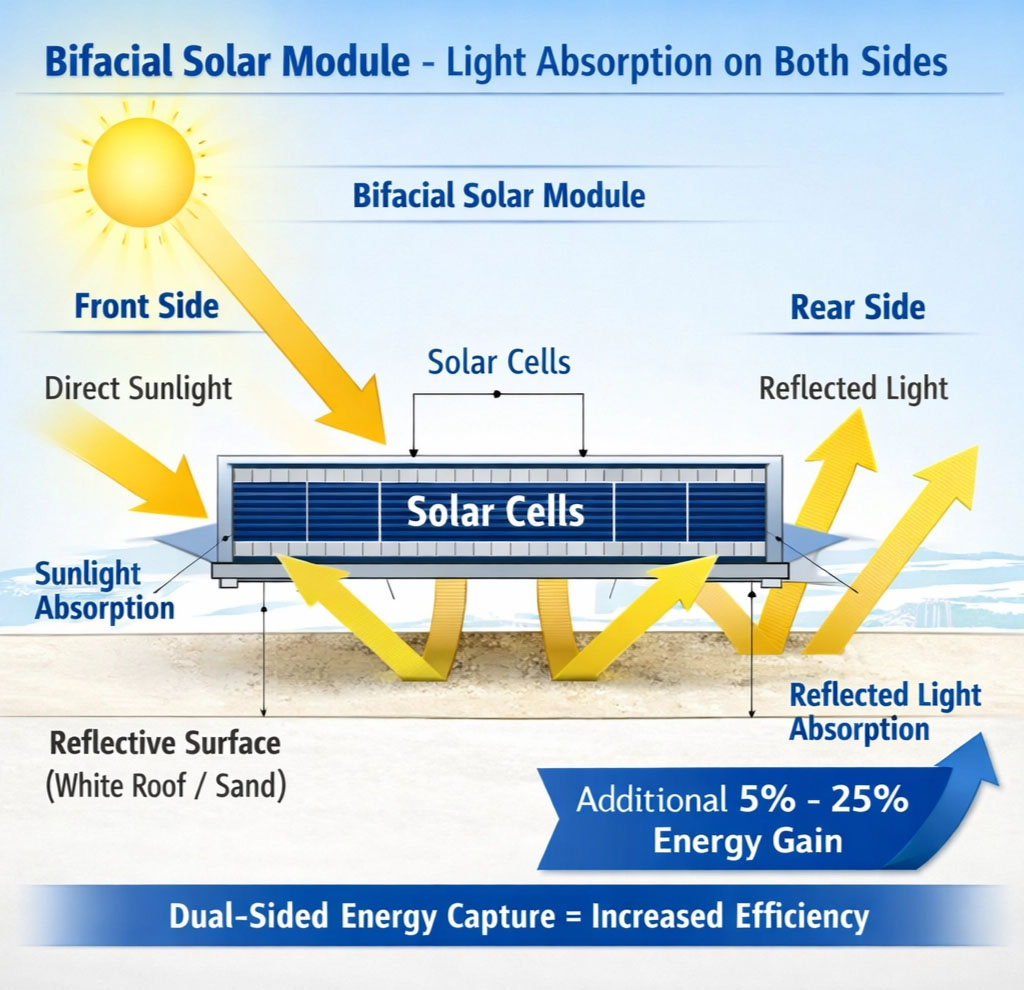

Part 4: Bifacial Function – The “Secret Weapon” for Additional Generation

Bifacial is not an independent cell technology but a module packaging method.

Bifacial modules use glass or transparent backsheets on the rear side, absorbing light reflected from the ground or water surfaces to generate electricity, adding 5%-25% additional output.

Ideal Scenarios:

• Snow-covered areas (high reflectivity)
• Sandy or light-colored ground
• White roofs
• Floating PV systems

Whether PERC, TOPCon, or HJT cells, they can all be made into bifacial modules. Currently, bifacial has become a standard feature for large-scale ground-mounted power stations.

Part 5: BC Technology – The “Ultimate Form” of Single-Junction Silicon Cells

BC stands for Back Contact, representing a disruptive structural design.

Core Principle: Hiding All “Wires” at the Back

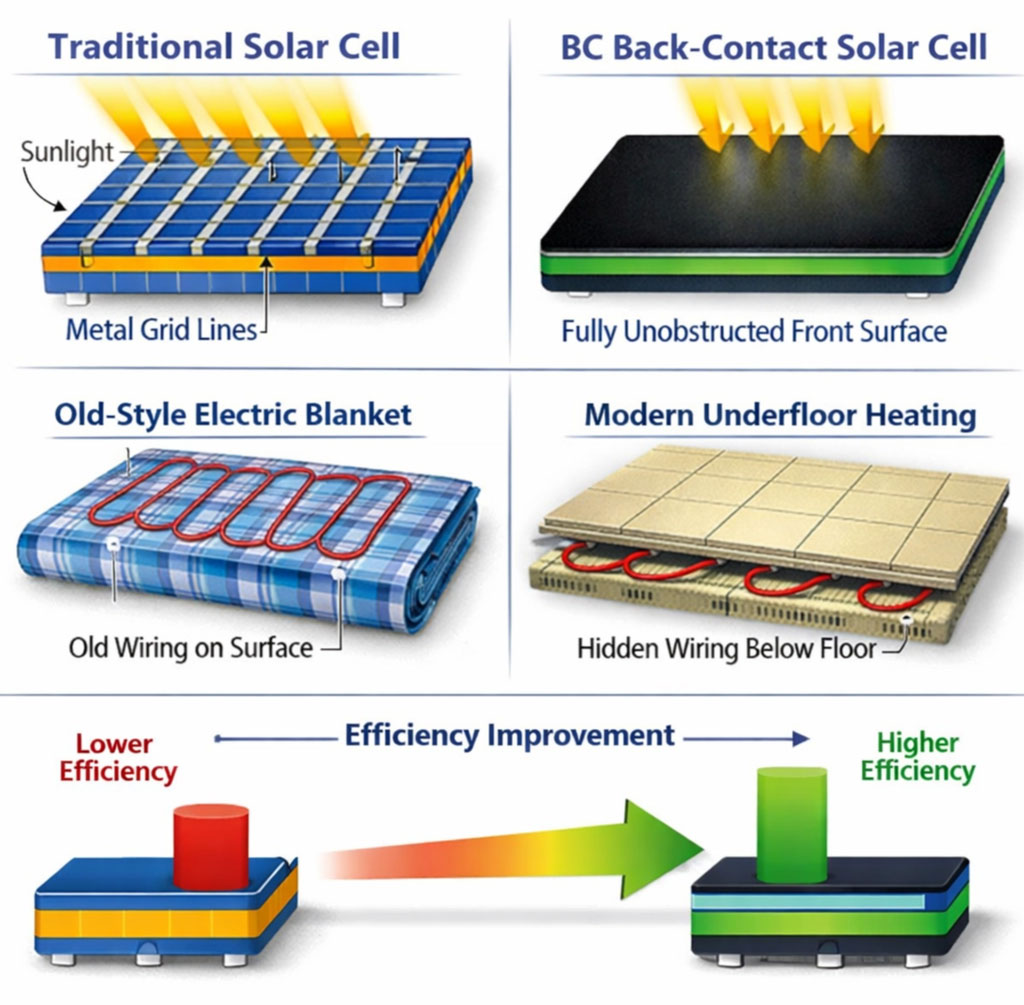

Traditional cells have silver grid lines on the front that block sunlight, while BC cells move both positive and negative electrodes entirely to the rear.

Visual metaphor:

• Traditional cell = “Old-style electric blanket” with wires on the front
• BC cell = “Underfloor heating” with all wiring integrated at the back, completely unobstructed front surface

Key Advantages

• Extremely High Efficiency Ceiling: Theoretical limit reaches 29.1%, approaching the theoretical maximum of 29.4% for monocrystalline silicon cells. Leading companies have achieved mass production efficiency exceeding 27%, with laboratory efficiency reaching a new record of 27.81%.
• Stronger Generation Capacity: According to IPVF calculations, BC modules generate on average 1.84% more per watt than TOPCon, potentially reducing the levelized cost of electricity (LCOE) by over 3%.
• Unique Shading Resistance: In partial shading scenarios, BC cells can delay power drops, expanding the range of suitable rooftops while significantly reducing “hot spot effects” and improving safety.
• Exceptional Aesthetics: Completely black front surface with no grid lines, creating a pure visual effect highly popular in the high-end distributed market.

The BC Technology Family

BC is a platform technology that can combine with mainstream passivation technologies:

Technology Branch	Combination	Features
HPBC	Passivated emitter + BC structure	Led by Longi, balanced performance
TBC	TOPCon + BC structure	Huge efficiency potential
HBC	HJT + BC structure	One of the efficiency record holders, complex process
ABC	Optimized rear patterning design	Led by Aiko, high bifaciality and reliability

Challenges

• Extremely Complex Process: Requires forming interdigitated structures on the rear with demanding precision requirements; yield improvement is a core challenge
• Higher Equipment Investment: Equipment investment per GW capacity is currently higher than TOPCon

However, leading companies are continuously driving cost reduction and efficiency improvement through methods like replacing traditional photolithography with laser patterning and developing copper plating processes. As the industry chain matures, BC cell costs are rapidly decreasing, and market share is quickly increasing.

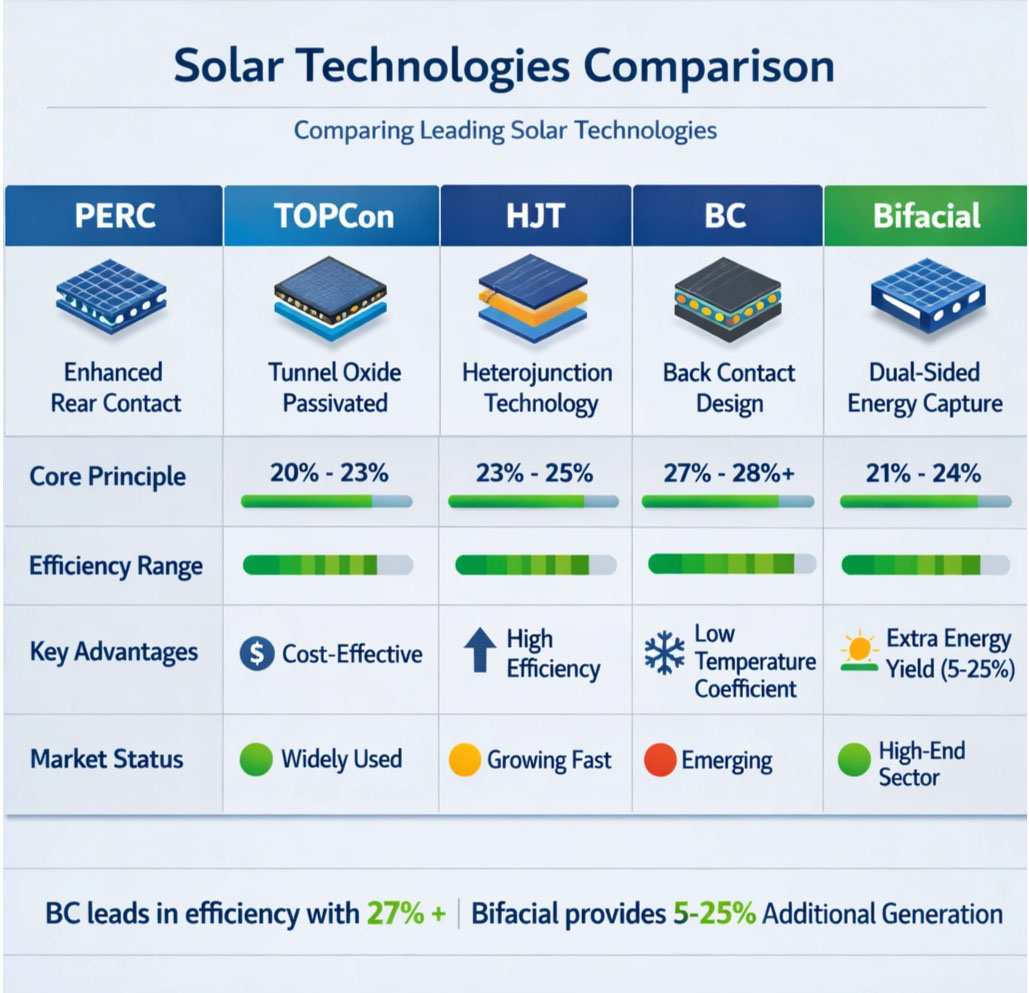

Part 6: Quick Comparison Table of All Technologies

Technology	Core Principle	Efficiency Performance	Key Advantages	Current Status
PERC	Rear passivation	Mass production 23%, limit 24.5%	Mature, good value	Current mainstream, being replaced
TOPCon	Tunnel oxide passivated contact	Mass production 25%+, limit 28.7%	High efficiency, low degradation, good compatibility	Next-gen frontrunner, mass production
HJT	Heterojunction structure	Mass production 24.4%+	High bifaciality, good temp coefficient, simple process	Promising, cost-constrained
BC	Back contact structure	Mass production 27%+, limit 29.1%	Ultimate efficiency, aesthetics, shading resistance	Ultimate single-junction form, rapidly growing share
Bifacial	Packaging method	Rear gain 5%-25%	Additional generation, ideal for high-reflection environments	Standard for ground-mounted plants

Part 7: Summary and Selection Recommendations

Understanding the Relationships:

• Monocrystalline/Polycrystalline is the foundation: Determines the cell’s “origin”
• PERC/TOPCon/HJT/BC is the core technology: Determines the cell’s “capability”
• Bifacial is an enhancement function: Determines the module’s “generation method”

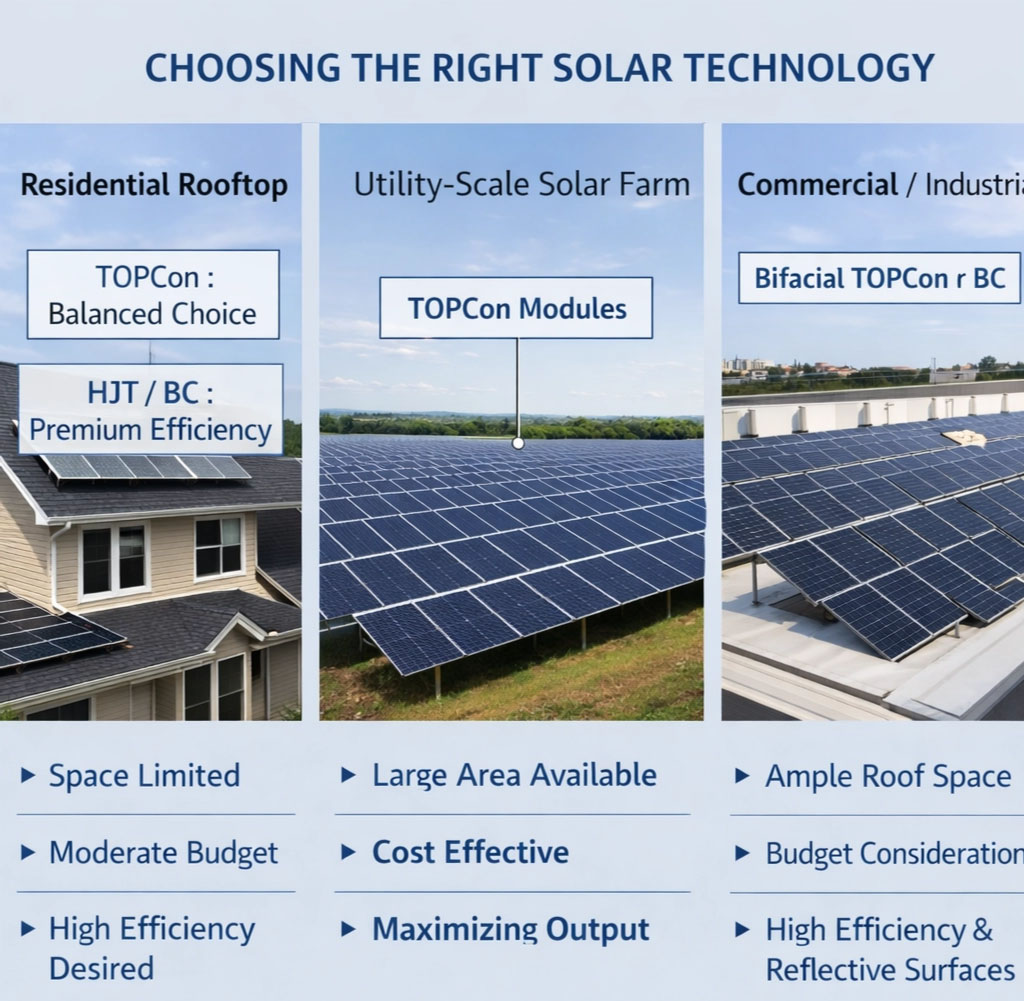

Selection Recommendations for Different Users:

Residential Users (Roof Installation)

• First choice: Monocrystalline cells
• TOPCon: Balanced choice with high performance and reliability
• BC: Worth considering if budget allows, pursuing ultimate efficiency and aesthetics

Large-Scale Plant Investors

• Need to calculate LCOE carefully
• TOPCon is currently the mainstream choice
• HJT and BC have clear advantages in specific scenarios (limited land, high electricity prices, high environmental requirements)

Commercial & Industrial Roofs

• Recommend monocrystalline TOPCon or BC bifacial modules
• Can fully utilize reflected light from roofs for additional generation revenue

Conclusion

Photovoltaic technology continues to develop rapidly. Choosing the product that best suits your needs is what matters most. We hope this article helps clarify your thinking and supports informed decision-making.

Whether you’re a homeowner looking to maximize energy efficiency, a business seeking reliable power solutions, or a large-scale investor calculating LCOE, understanding these key differences will help you make the right choice.
